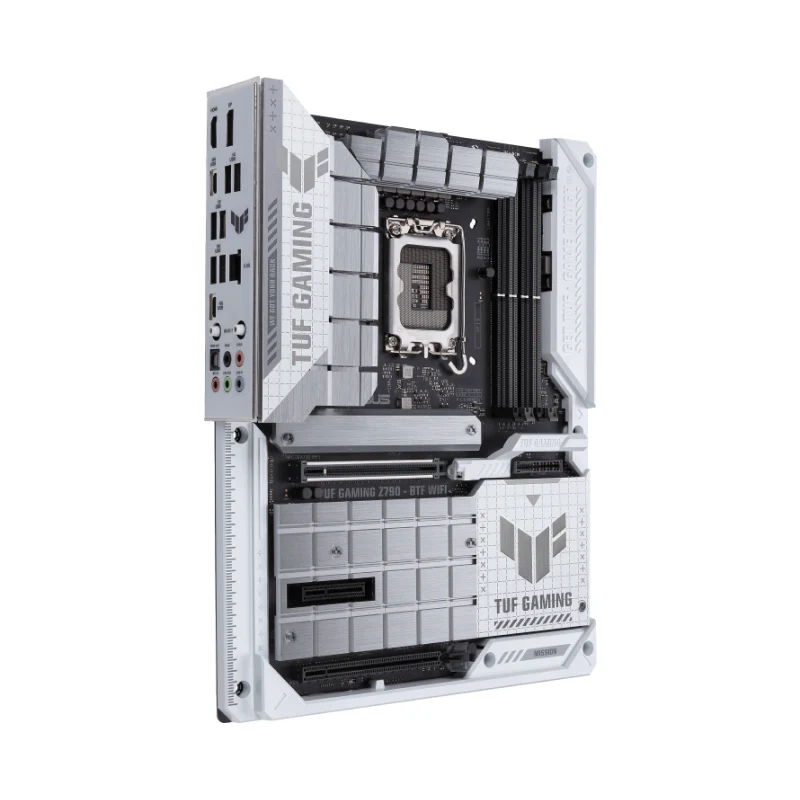

TUF GAMING Z790-BTF WIFI 197105468160 Motherboards

TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.

Specification :

Model

• TUF GAMING Z790-BTF WIFI

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• * Refer to www.asus.com for CPU support list.

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z790 Chipset

Memory

• 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP) memory module

• ASUS Enhanced Memory Profile II (AEMP II)

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/


Graphics

• 1 x DisplayPort**

• 1 x HDMI™ port***

• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI 2.1.

• **** VGA resolution support depends on processors’ or graphic cards’ resolution.


Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)*

• 1 x PCIe 5.0 x16 slot

• Intel® Z790 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x4 slot

• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
