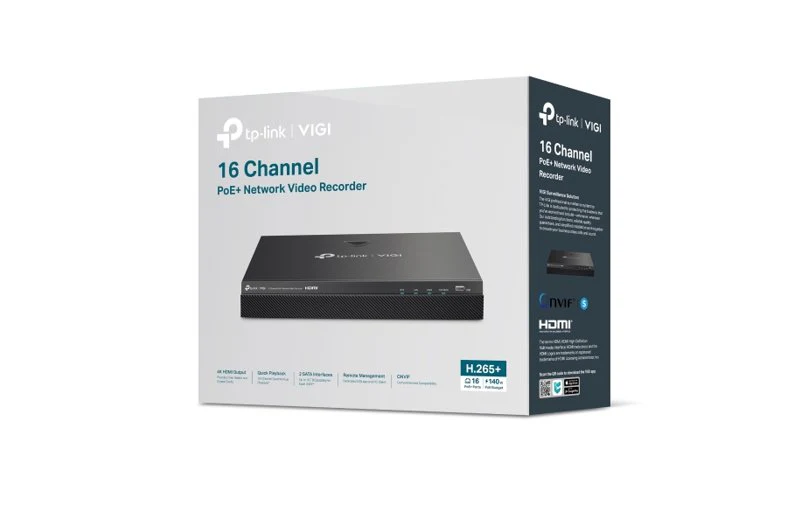

TP-Link VIGI NVR2016H-16MP 16 Channel PoE+ Network Video Recorder 4K

The TP-Link VIGI NVR2016H-16MP is a 16-channel PoE+ network video recorder designed for high-definition surveillance. It supports up to 16 IP cameras with power and data delivered through a single Ethernet cable, simplifying installation and reducing cabling costs. The recorder captures video at up to 4K resolution (3840 x 2160) and uses H.265+ compression to optimise storage efficiency without compromising image quality.

This NVR features 16 PoE+ ports with a total power budget of 140W, providing stable power delivery for cameras over extended cable runs. It includes HDMI and VGA video outputs, supports one HDD up to 10TB for local storage, and offers remote access via smartphone, tablet, or web browser for live viewing and playback. The unit is powered by a Linux-based operating system and is compatible with ONVIF cameras for flexible system integration.

With dimensions of 325 x 234 x 43 mm and a weight of approximately 1.1 kg, the NVR2016H-16MP is suitable for rack or shelf mounting in commercial or residential surveillance setups. It supports 16-channel real-time live view and simultaneous playback, ensuring continuous monitoring and reliable performance.

Channels Supported	16 PoE+ IP Camera Channels
Recording Resolution	Up to 4K (3840 x 2160)
Compression Technology	H.265+
PoE+ Ports	16 x PoE+ (30W max per port, 140W total budget)
Video Output	HDMI, VGA
Storage Capacity	1 x HDD up to 10TB
Network Interface	1 x RJ45 10/100/1000 Mbps
Power Supply	DC 12V
Operating System	Linux-based
Dimensions	325 x 234 x 43 mm
Weight	1.1 kg
