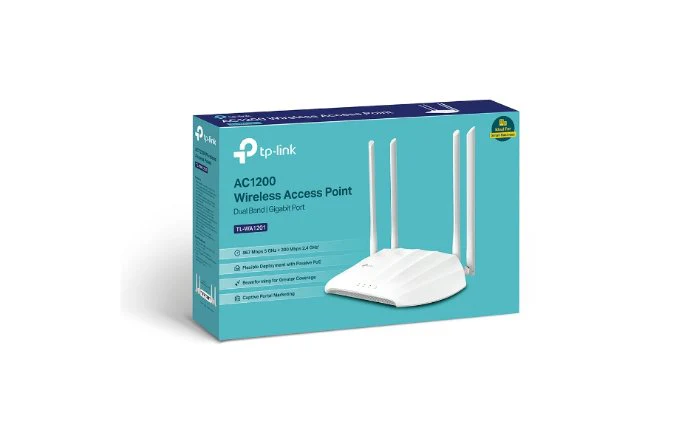

TP-Link TL-WA1201 AC1200 Dual-Band Wireless Access Point

The TP-Link TL-WA1201 delivers AC1200 dual-band Wi-Fi with 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. MU-MIMO technology transfers data to multiple devices simultaneously for up to 2x faster performance, making it a reliable upgrade for boosting wireless coverage in homes and small offices.

Four fixed antennas with Beamforming technology extend and concentrate the signal toward connected devices. This focused coverage improves range and stability, ensuring laptops, phones, and smart devices stay strongly connected even in larger spaces.

The access point supports Access Point, Range Extender, Multi-SSID, and Client modes, and can run up to four separate SSIDs and VLANs on each band for flexible network segmentation. Passive PoE allows installation via a single Ethernet cable carrying both data and power up to 100 feet, with a built-in Captive Portal for custom landing pages.

Wi-Fi Standard	802.11ac (AC1200), dual-band
Speed	Up to 1200 Mbps (867 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz)
Antennas	4 fixed with Beamforming
Ports	Gigabit Ethernet
Power	Passive PoE (up to 30.5 m)
Modes	Access Point, Range Extender, Multi-SSID, Client
Features	MU-MIMO, up to 4 SSIDs/VLANs per band, Captive Portal
