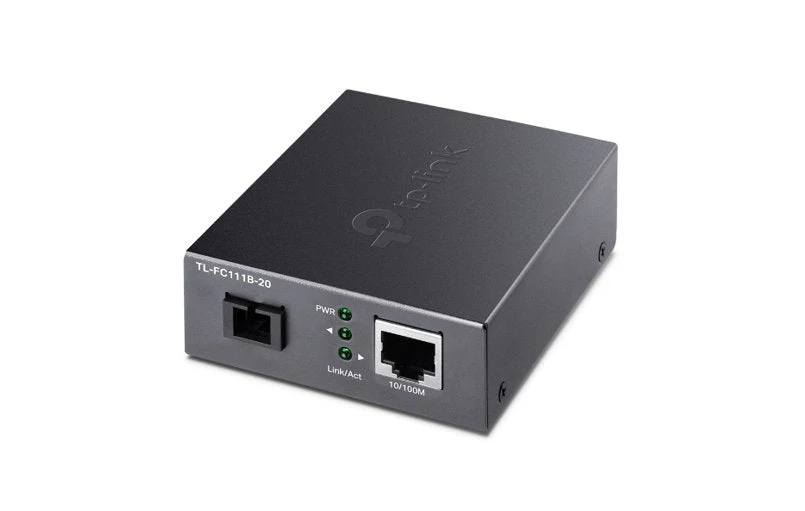

TP-Link TL-FC111B-20 Single-Mode SC 10/100 Mbps WDM Media Fiber Converter

The TP-Link TL-FC111B-20 is a single-mode SC media fiber converter that supports 10/100 Mbps Fast Ethernet and WDM technology for bi-directional transmission over a single fiber strand. It is designed to extend network connections over long distances, up to 20 km, while maintaining reliable performance for commercial and industrial applications.

This converter features a rugged metal casing and compact dimensions of 97 x 69 x 27 mm, making it suitable for both indoor and outdoor use. The plug-and-play design simplifies installation, and the device is powered by a 5V DC, 1A adapter. With compliance to CE and FCC standards, it ensures dependable operation in demanding environments.

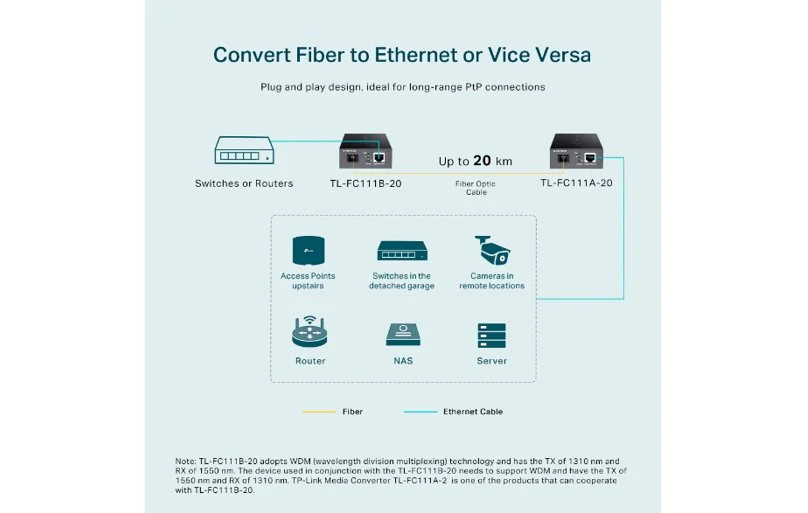

Equipped with one 100Mbps SC port and one 10/100M RJ45 port with auto MDI/MDIX, the TL-FC111B-20 is ideal for bridging fiber and Ethernet networks, reducing the need for additional cabling while maintaining high-speed data transfer.

Ethernet Standard	10/100 Mbps
Fiber Interface	Single-mode SC

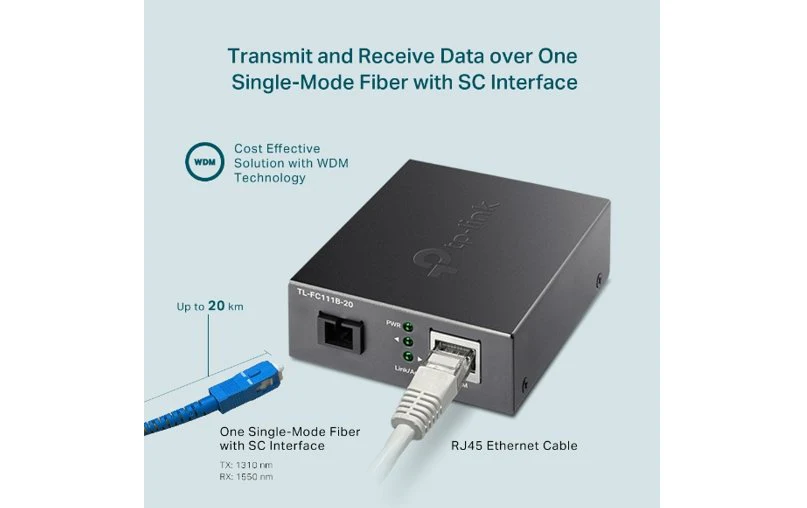

WDM Technology	Bi-directional transmission over a single fiber strand
Max Distance	Up to 20 km
Port	1× 100Mbps SC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX)
Wavelength	Tx: 1310 nm, Rx: 1550 nm
Power Supply	5V DC, 1A
Dimensions	97 x 69 x 27 mm
Weight	0.5 kg
Operating Temperature	0°C to 50°C
Compliance	CE, FCC
