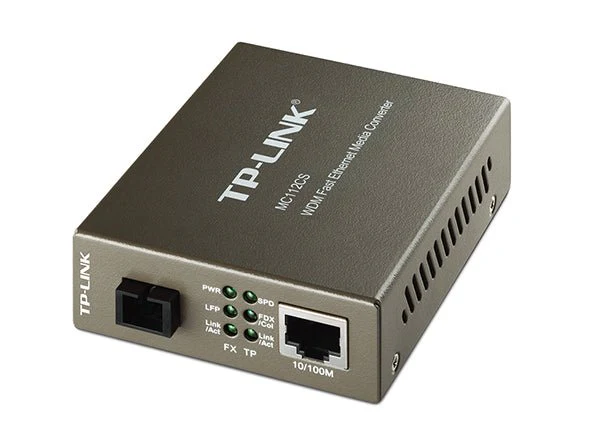

TP-Link Omada MC112CS 100Mbps SC WDM Bi-Di Fiber Converter

The TP-Link Omada MC112CS is a media converter that converts 10/100 Mbps Ethernet signals (RJ45) into 100 Mbps single-mode SC WDM bi-directional fiber signals. This enables two-way data transmission over a single fiber, doubling capacity and reducing cable requirements for long-distance network connections.

WDM technology allows bi-directional communication over a single fiber strand, simplifying network design and reducing infrastructure costs. The MC112CS supports connections up to 20 kilometres over single-mode fibre, making it suitable for linking remote offices or buildings with stable, interference-free data transfer.

The device features plug-and-play setup with an auto-negotiating RJ45 port and an SC single-mode fiber port. It is built for professional network environments with a compact, durable design and low power consumption.

Ethernet Port	1 x RJ45 10/100 Mbps Auto-Negotiation
Fiber Port	1 x SC Single-mode Fiber (100 Mbps, WDM Bi-Directional)
Fiber Distance	Up to 20 km
WDM Technology	Bi-Directional over Single Fiber
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (Non-condensing)
Power Supply	5V/1A (External Power Adapter)
Dimensions	83.8 x 53.3 x 22.9 mm
Wavelength	Tx: 1310 nm, Rx: 1550 nm
