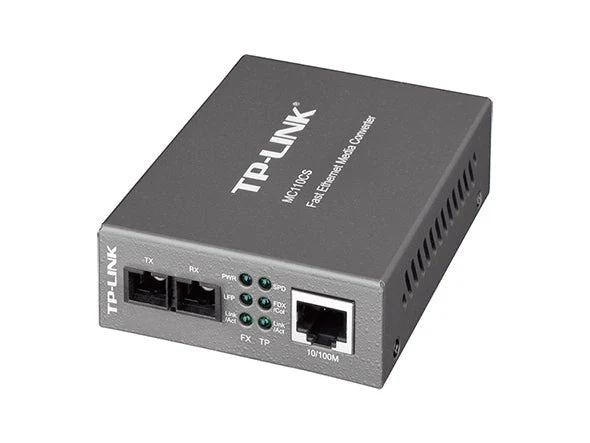

TP-Link Omada MC110CS 100Mbps SC Media Converter

The TP-Link Omada MC110CS is a media converter that converts 10/100 Mbps Ethernet signals from an RJ45 port to 100 Mbps single-mode SC fiber signals. It extends network range up to 20 kilometres over single-mode fiber, enabling connectivity between remote locations with minimal signal loss.

This converter features an auto-negotiating 10/100 Mbps Ethernet port and a single-mode SC fiber port for seamless integration into existing network infrastructure. It supports IEEE 802.3, 802.3u, and 802.3x standards, ensuring compatibility with a wide range of network devices.

The MC110CS has a compact and durable design suitable for commercial and industrial environments. It operates within a temperature range of 0°C to 40°C and is powered by an external 5V/1A adapter.

Ethernet Port	1 x RJ45 10/100 Mbps Auto-Negotiation
Fiber Port	1 x SC Single-mode Fiber (100 Mbps)
Fiber Distance	Up to 20 km on single-mode fiber
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (Non-condensing)
Power Supply	5V/1A (External Power Adapter)
Dimensions	83.8 x 53.3 x 22.9 mm
Duplex Mode	Full-duplex
Rack-mountable	Yes (with Chassis TL-MC1400)
