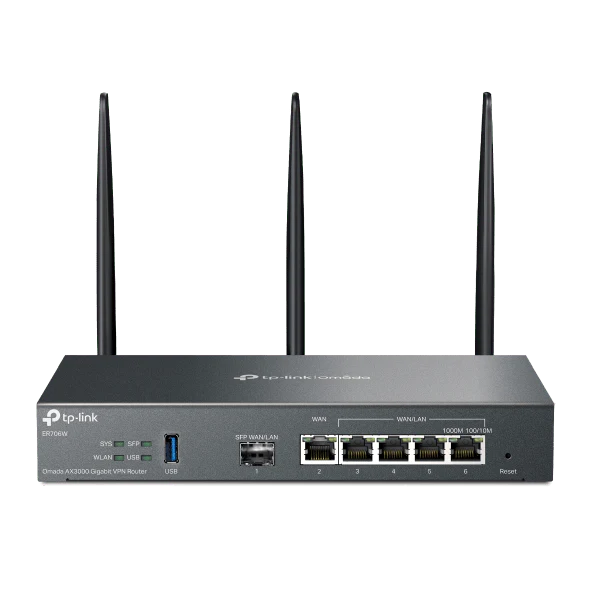

TP-Link Omada ER706W AX3000 Gigabit VPN Router

The TP-Link Omada ER706W is an advanced AX3000 Gigabit VPN Router designed for small to medium-sized businesses requiring high-speed internet connectivity and secure VPN access. Powered by Wi-Fi 6 (802.11ax) technology, it delivers speeds of up to 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, with support for 160 MHz channel width, OFDMA, MU-MIMO, and Beamforming for improved network efficiency.

This router features one Gigabit SFP WAN/LAN port, one Gigabit RJ45 WAN port, four Gigabit RJ45 WAN/LAN ports, and one USB 3.0 port. It supports a comprehensive range of VPN protocols including SSL VPN, OpenVPN, Wireguard, IPsec, PPTP, L2TP, and L2TP over IPSec. Additional features include integration with the Omada SDN Controller, load balancing, link backup, 4G LTE backup via USB dongle, policy-based firewall, static routing, policy routing, multi-net DHCP, VLAN, stateful ACL, mDNS repeater, and bridge VLAN.

The router includes three detachable antennas and supports passive PoE. It operates at temperatures from 0°C to 40°C and is powered by a 12V DC, 1.5A supply. Dimensions are 216 x 142 x 33 mm and weight is approximately 0.29 kg.

Model	TP-Link Omada ER706W
Wireless Standard	IEEE 802.11ax (Wi-Fi 6)
Frequency Band	Dual-Band (2.4 GHz and 5 GHz)
Wireless Speed	574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160)
Ports	1x Gigabit SFP WAN/LAN, 1x Gigabit RJ45 WAN, 4x Gigabit RJ45 WAN/LAN, 1x USB 3.0
VPN Protocols	SSL VPN, OpenVPN, Wireguard, IPsec, PPTP, L2TP, L2TP over IPSec
Antennas	3x Detachable
Power Supply	12V DC, 1.5A
Operating Temperature	0°C to 40°C
Dimensions	216 x 142 x 33 mm
Weight	0.29 kg
PoE Support	Passive PoE
Features	Omada SDN Controller, 160MHz, OFDMA, MU-MIMO, Beamforming, Load Balance, Link Backup, 4G LTE Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, Stateful ACL, mDNS Repeater, Bridge VLAN
