TP-Link Omada AC1200 Gigabit Wall-Plate Dual-Band AP EAP235-Wall

The TP-Link Omada EAP235-Wall is an AC1200 dual-band wireless access point designed for wall-mount installation, delivering up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band. It features MU-MIMO technology for efficient multi-device performance and supports 802.3af PoE for easy deployment.

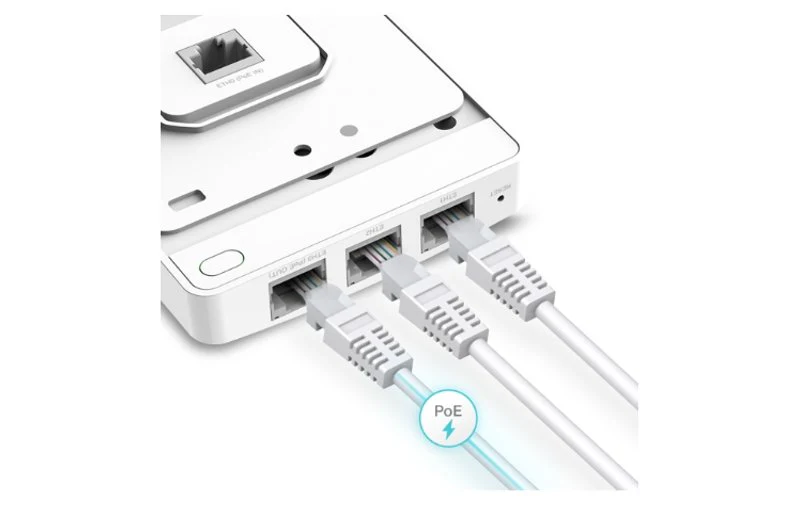

With a sleek wall-plate form factor, this access point integrates seamlessly into offices, hotels, and schools. It includes one Gigabit uplink port and three Gigabit downlink ports, enabling wired connectivity for nearby devices.

Centralised management is available via the Omada SDN Controller or Omada App, providing features like band steering, beamforming, and load balancing for optimised network performance.

Wireless Standard	IEEE 802.11ac/n/a/g/b
Frequency Band	Dual-Band (2.4 GHz and 5 GHz)
Wireless Speed	300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Ports	Uplink: 1× Gigabit RJ45; Downlink: 3× Gigabit RJ45
PoE	802.3af PoE
Antennas	2× Internal Antennas
Dimensions	143 × 86 × 19.7 mm
Weight	0.222 kg
Operating Temperature	0°C to 40°C
Power Supply	12V DC, 0.5A
MU-MIMO	Yes
Management	Omada SDN Controller, Omada App
