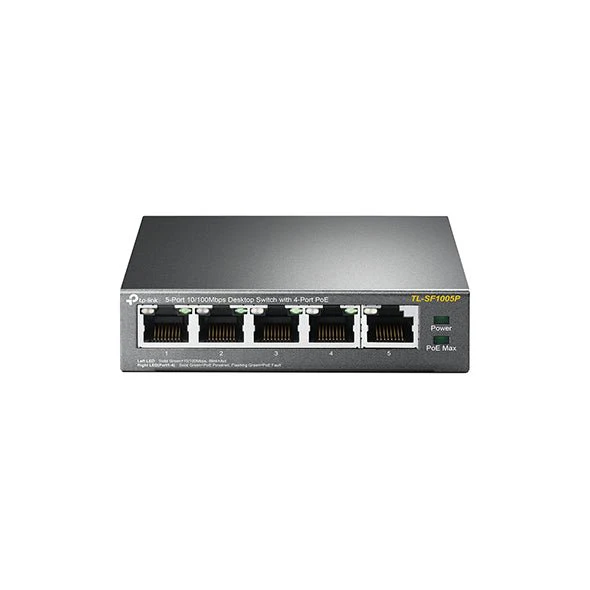

TP-Link Omada 5-Port 10/100Mbps PoE+ Switch

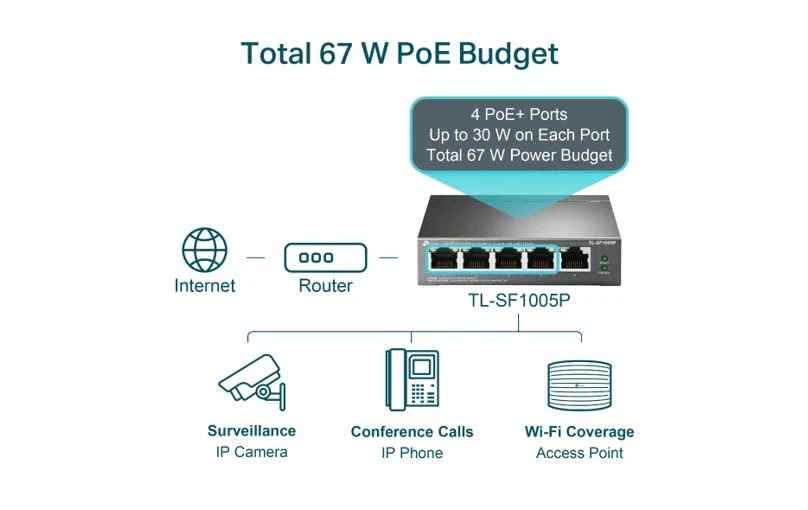

The TP-Link Omada TL-SF1005P is a 5-port 10/100 Mbps PoE+ switch with a 67 W total power budget and up to 30 W per port, compliant with 802.3af/at. It powers IP cameras, wireless access points, and IP phones over a single cable, eliminating the need for separate power adapters.

Extend Mode enables PoE and data transmission up to 250 metres (820 feet), beyond the standard 100-metre limit. Priority Mode on ports 1 and 2 provides low-latency forwarding for voice and video traffic, while PoE Auto Recovery automatically reboots unresponsive powered devices for reliable operation.

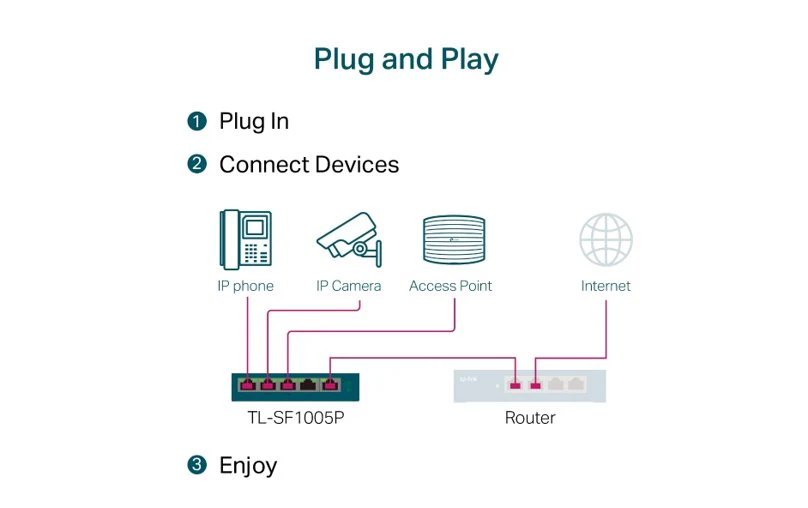

The fanless metal case ensures silent and reliable operation with no configuration required, and intelligent power management protects against overload by prioritising power to essential ports.

Ports	5 x 10/100 Mbps RJ45 (4 with PoE+)
PoE Standard	802.3af/at (PoE+)
Total PoE Budget	67 W
Max Per-Port PoE	30 W
Switching Capacity	1 Gbps
MAC Address Table	2K
Extend Mode	PoE/data up to 250 m
Cooling	Fanless metal casing
