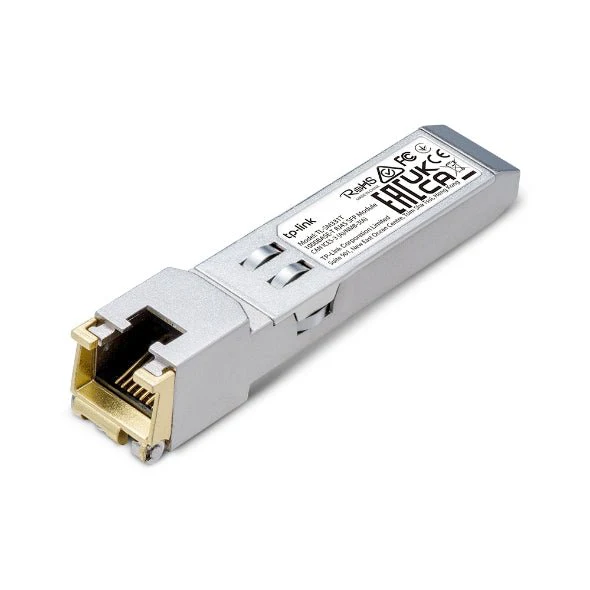

TP-Link Omada 1000BASE-T RJ45 SFP Module SM331T

The TP-Link Omada SM331T is a 1000BASE-T RJ45 SFP module that provides Gigabit Ethernet connectivity over twisted pair copper cables. It supports data transfer rates up to 1000 Mbps and is compatible with TP-Link Omada switches, routers, and other SFP-compatible networking equipment.

The module features a plug-and-play design for easy installation and is built with robust protection against electromagnetic interference. It operates within a temperature range of 0°C to 70°C and has a typical power consumption of ≤0.5W.

With dimensions of 54 x 14.2 x 9 mm, the SM331T is a compact and energy-efficient solution for expanding network infrastructure in data centers, businesses, or enterprise environments.

Model	TP-Link Omada 1000BASE-T RJ45 SFP Module (SM331T)
Data Rate	1000 Mbps (1 Gbps)
Connector	RJ45
Standard	IEEE 802.3ab
Cable Distance	Up to 100 m (Cat5e or above)
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% (Non-condensing)
Power Consumption	≤ 0.5W
Dimensions	54 x 14.2 x 9 mm
