TP-Link Omada 10/100Mbps SC WDM Fiber Converter TL-FC111A-20

The TP-Link Omada TL-FC111A-20 is a media converter that converts 10/100 Mbps Ethernet (RJ45) signals into 100 Mbps single-mode SC WDM bi-directional fiber signals, enabling two-way communication over a single fiber strand.

It supports network extensions up to 20 kilometers on single-mode fiber, making it suitable for connecting buildings across campuses or linking multiple floors. The plug-and-play design integrates easily into existing networks with auto-negotiating Ethernet and SC fiber ports.

Built with a compact form factor and low power consumption, it is designed for durable, long-term operation in network closets or server rooms.

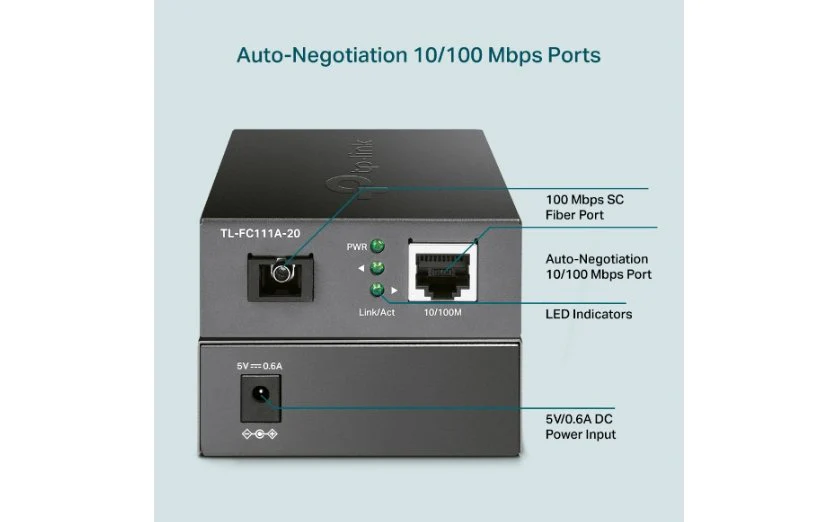

Ethernet Port	1 x RJ45 10/100 Mbps Auto-Negotiation
Fiber Port	1 x SC Single-mode Fiber (100 Mbps, WDM Bi-Directional)
Fiber Distance	Up to 20 km on single-mode fiber
WDM Technology	Bi-Directional over Single Fiber
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating Temperature	0°C to 40°C
Power Supply	5V/1A (External Power Adapter)
Dimensions	83.8 x 53.3 x 22.9 mm
