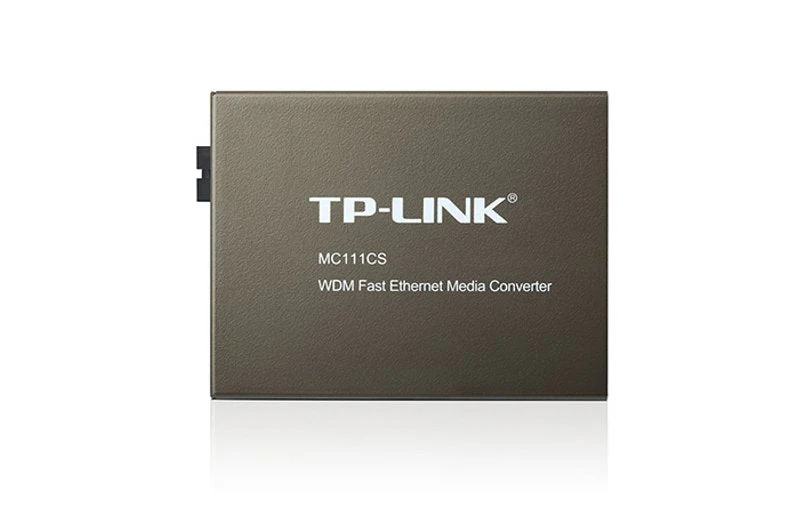

TP-Link MC111CS Single-Mode SC 10/100Mbps WDM Media Fiber Converter

The TP-Link MC111CS is a single-mode SC media converter that uses Wavelength Division Multiplexing (WDM) technology to enable bi-directional communication over a single fiber strand. This device supports 10/100Mbps Ethernet and can reach distances of up to 20 kilometres, making it suitable for extending network connections between buildings, campuses, or industrial sites.

The converter includes one 100Mbps SC port and one 10/100M RJ45 port with auto MDI/MDIX, and operates in full-duplex mode with transmit at 1550 nm and receive at 1310 nm. It is powered by a 5V DC, 1A supply and features dimensions of 97 x 69 x 27 mm, operating within a temperature range of 0°C to 50°C.

This unit comes with a 5-year local warranty and is CE and FCC compliant. It is rack-mountable in the TL-MC1400 chassis if required.

Ethernet Standard	10/100Mbps
Fiber Interface	Single-mode SC
WDM Technology	Bi-directional transmission over a single fiber strand
Max Distance	Up to 20 km (12.4 miles)
Ports	1× 100Mbps SC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX)
Full-duplex	Tx: 1550 nm, Rx: 1310 nm
Power Supply	5V DC, 1A
Dimensions	97 × 69 × 27 mm
Operating Temperature	0°C to 50°C
Compliance	CE, FCC
Warranty	5 years local warranty
Weight	0.5 kg
