TP-Link Archer MR505 AC1200 4G LTE Advanced Cat6 Gigabit Router

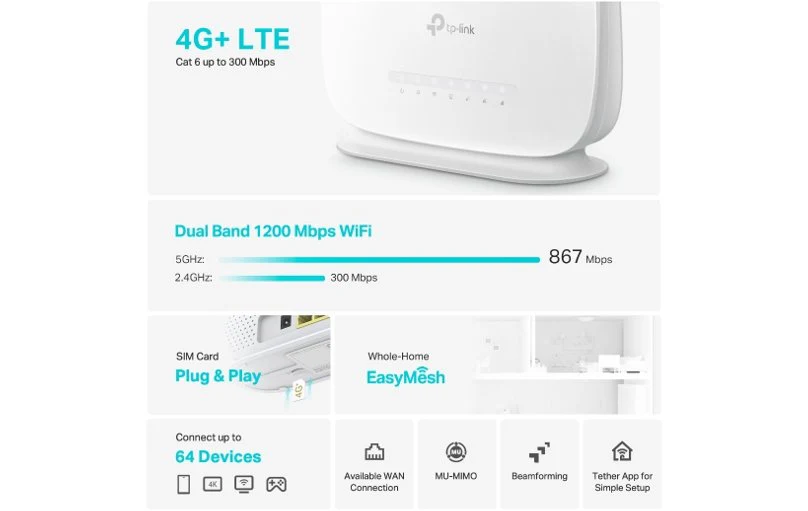

The TP-Link Archer MR505 is an AC1200 dual-band wireless router with an integrated 4G LTE Advanced Cat6 modem, delivering download speeds up to 300Mbps and upload speeds up to 50Mbps over the mobile network. It provides simultaneous Wi-Fi connections on the 2.4GHz band (up to 300Mbps) and the 5GHz band (up to 867Mbps), suitable for streaming, gaming, and everyday browsing in home offices or small businesses.

The router features one Gigabit WAN port and four Gigabit LAN ports for wired connections, along with internal antennas for a compact design. It supports WPA3 encryption, a built-in firewall, and guest network functionality for secure network management. Setup and control are handled via the TP-Link Tether app or web interface, with additional features including parental controls, QoS, and EasyMesh compatibility.

Powered by a 12V/1A adapter, the MR505 measures 200 x 145 x 40 mm and operates within a temperature range of 0°C to 40°C. It is compliant with CE and FCC standards, and comes with a 3-year local warranty.

Connectivity	4G LTE Advanced Cat6 (up to 300Mbps download, 50Mbps upload)
Wi-Fi Speed	AC1200 (300Mbps on 2.4GHz, 867Mbps on 5GHz)
Ethernet Ports	1 x Gigabit WAN port, 4 x Gigabit LAN ports
Wi-Fi Standard	802.11ac (Dual Band)
SIM Slot	1 x Standard SIM card slot for 4G LTE
Security	WPA3 encryption, firewall, guest network support
Management	TP-Link Tether app, web interface
Power Supply	12V/1A
Dimensions	200 x 145 x 40 mm
Operating Temperature	0°C to 40°C
Compliance	CE, FCC
