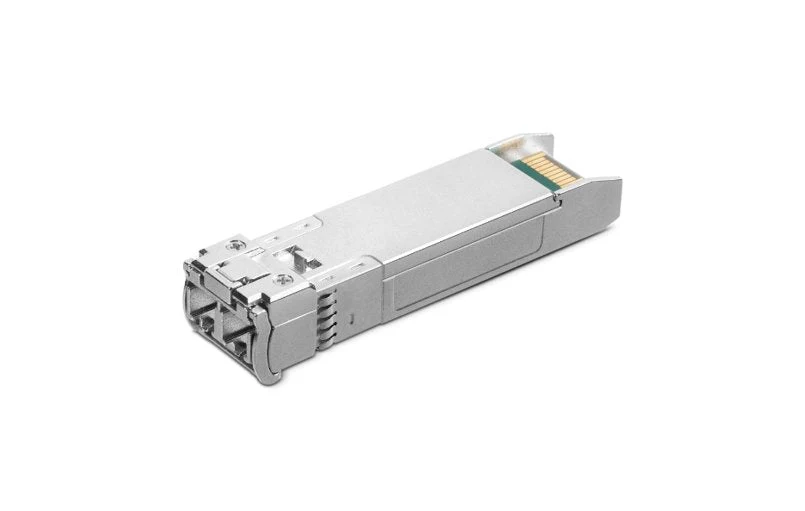

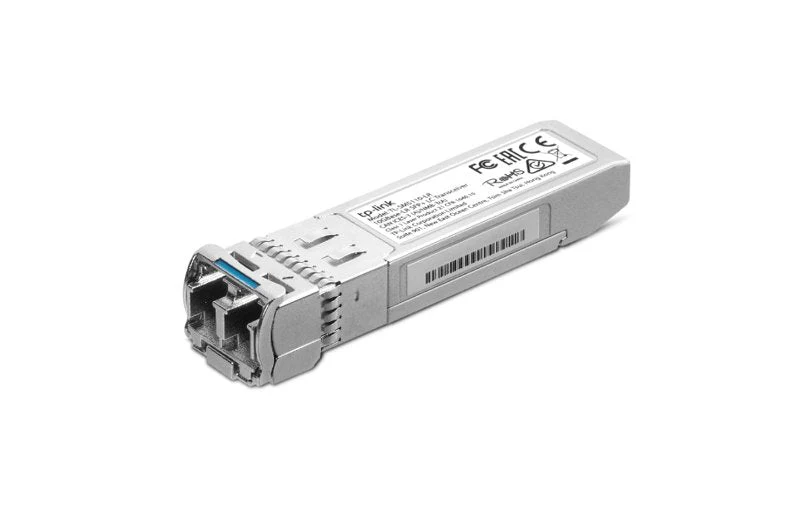

TP-Link 10GBase-LR SFP+ LC Transceiver TL-SM5110-LR

The TP-Link TL-SM5110-LR is a 10GBase-LR SFP+ LC transceiver designed for long-range optical networking. It supports data rates of up to 10Gbps over single-mode fiber, ensuring fast and reliable connectivity for enterprise environments, data centers, and large-scale networking setups.

Equipped with Digital Diagnostic Monitoring (DDM), this transceiver provides real-time monitoring of critical parameters such as temperature, voltage, and signal strength. This feature enhances network management by offering detailed insights into module performance, helping maintain optimal network health and quickly troubleshoot potential issues.

Utilizing a 1310nm wavelength and LC duplex connector, the TL-SM5110-LR transmits data over distances of up to 10 kilometers. It is compatible with standard SFP+ slots on TP-Link and other devices, making it an ideal choice for bandwidth-intensive applications such as virtualization, high-definition video streaming, and cloud computing.

Type	10GBase-LR SFP+ LC Transceiver
Connector	LC duplex
Wavelength	1310nm
Transmission Distance	Up to 10km over single-mode fiber
Data Rate	Up to 10Gbps
Features	Supports DDM for real-time monitoring
Compatibility	Standard SFP+ slots on TP-Link and other devices
Applications	Data centers, enterprise networks, and long-distance fiber setups
