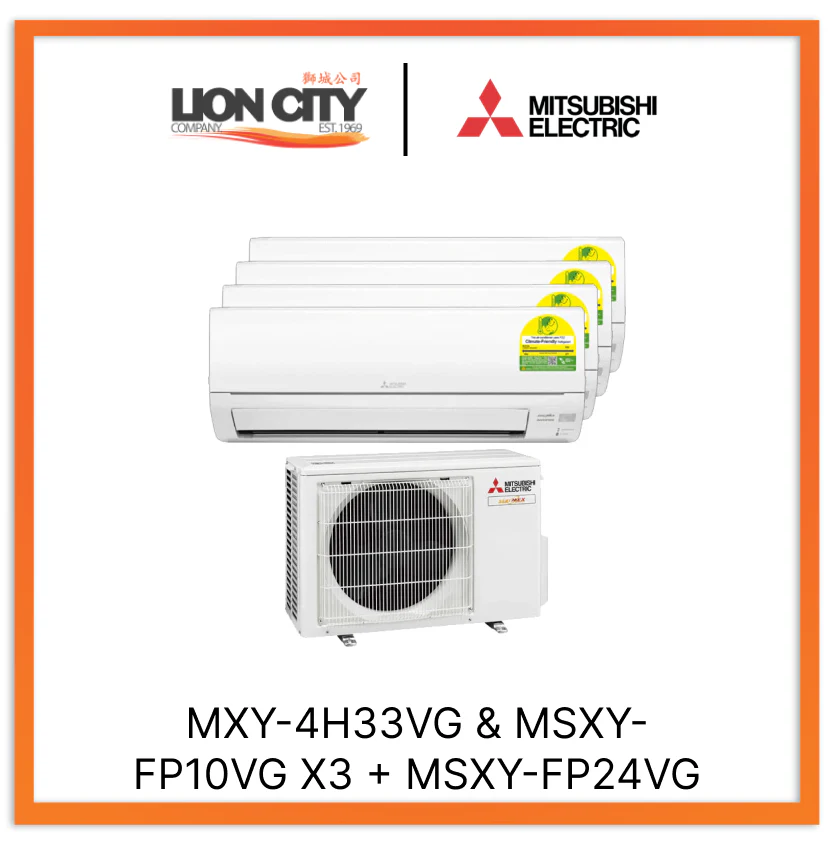

Mitsubishi Electric Starmex System 4 Aircon (9K X3 + 24K)

• MODEL - INDOOR UNIT MSXY-FP10VG
• Rated Capacity 2.8 W
• Power Input 0.028 kW
• Running Current 0.27 A
• Airflow Rate 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
• Sound Level * 19-24-29-36-45 dB(A)
• Dimension (W X D X H ) 799 x 232 x 290 mm
• Net Weight 9 kg
• External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm

MSXY-FP24VG

• Rated Capacity 7.1 kW
• Power Input 0.059 kW
• Running Current 0.52 A
• Airflow Rate 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
• Sound Level *30-35-41-45-50 dB(A)
• Dimension (W X D X H ) 923 x 250 x 305 mm
• Net Weight 13 kg
• External Piping Diameter Gas (ø): 12.7 mm Liquid (ø): 6.35 mm

MXY-4H33VG

• Capacity (Min - Max) 6.9 (1.3 - 10.7) kW
• Power Input 1.42 kW
• Full load COP 4.86
• Weighted COP ** 5.76
• Starting Current 6.37 A
• Running Current 6.37 A
• Airflow 38.7 CMM (m³/min)
• Dimension (W X D X H) 840 x 330 x 710
• Net Weight 55 kg
• Outdoor Sound Level * 49 dbA
• Connection Method Flared
• External Piping Diameter Gas (ø): 1 no X 12.7 + 3 no X 9.52
• Liquid (ø): 4 no X 6.35
• Piping Length Max Length (Each): 25 m
• Max. Length: 60 m
• Max. Height: 15 m
• Refrigerant R32
• No. of connectable indoor units (System) 230, 1, 50
