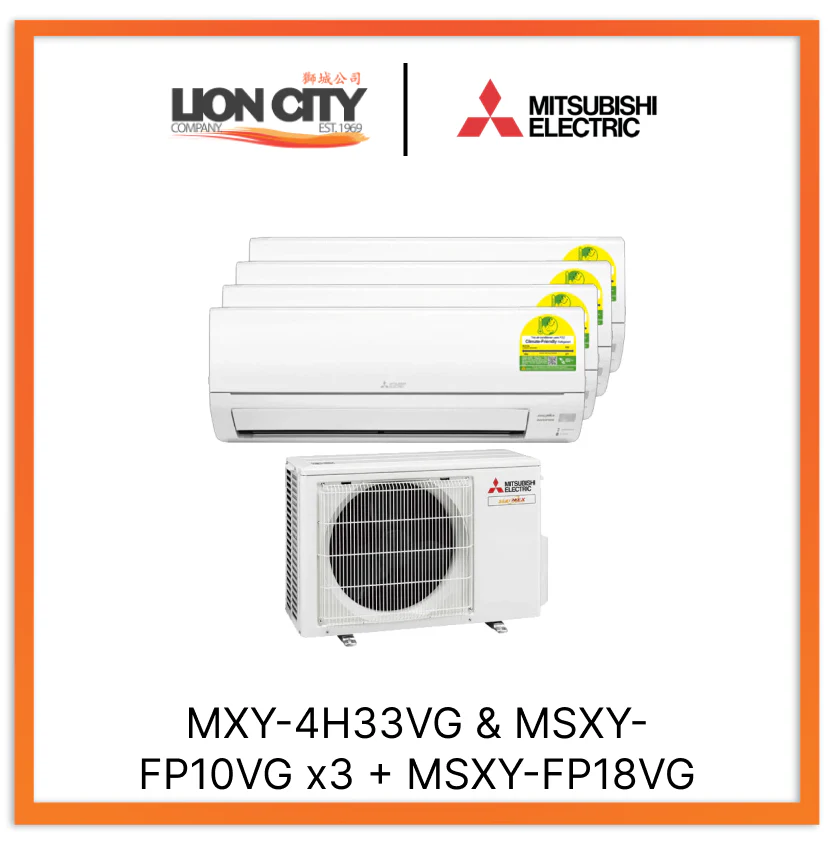

Mitsubishi Electric Starmex System 4 Aircon (9K X3 + 18K)

Mitsubishi Electric Starmex System 4 Aircon (9K X3 + 18K)

MSXY-FP10VG
  • MODEL - INDOOR UNIT MSXY-FP10VG
  • Rated Capacity 2.8 W
  • Power Input 0.028 kW
  • Running Current 0.27 A
  • Airflow Rate 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level * 19-24-29-36-45 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm

MSXY-FP18VG
  • Rated Capacity 5.0 kW
  • Power Input 0.042 kW
  • Running Current 0.38 A
  • Airflow Rate 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level *28-33-38-44-49 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm
MXY-4H33VG
  • Capacity (Min - Max) 6.9 (1.3 - 10.7) kW
  • Power Input 1.42 kW
  • Full load COP 4.86
  • Weighted COP ** 5.76
  • Starting Current 6.37 A
  • Running Current 6.37 A
  • Airflow 38.7 CMM (m³/min)
  • Dimension (W X D X H) 840 x 330 x 710
  • Net Weight 55 kg
  • Outdoor Sound Level * 49 dbA
  • Connection Method Flared
  • External Piping Diameter Gas (ø): 1 no X 12.7 + 3 no X 9.52
  • Liquid (ø): 4 no X 6.35
  • Piping Length Max Length (Each): 25 m
  • Max. Length: 60 m
  • Max. Height: 15 m
  • Refrigerant R32
  • No. of connectable indoor units (System) 230, 1, 50
$4,650.00
Mitsubishi Electric Starmex System 4 Aircon (9K X3 + 18K)—
$4,650.00

Product Information

Shipping & Returns

Description

MSXY-FP10VG
  • MODEL - INDOOR UNIT MSXY-FP10VG
  • Rated Capacity 2.8 W
  • Power Input 0.028 kW
  • Running Current 0.27 A
  • Airflow Rate 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level * 19-24-29-36-45 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm

MSXY-FP18VG
  • Rated Capacity 5.0 kW
  • Power Input 0.042 kW
  • Running Current 0.38 A
  • Airflow Rate 6.2-7.7-9.5-12.1-14.8 CMM (m³/min)
  • Sound Level *28-33-38-44-49 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm
MXY-4H33VG
  • Capacity (Min - Max) 6.9 (1.3 - 10.7) kW
  • Power Input 1.42 kW
  • Full load COP 4.86
  • Weighted COP ** 5.76
  • Starting Current 6.37 A
  • Running Current 6.37 A
  • Airflow 38.7 CMM (m³/min)
  • Dimension (W X D X H) 840 x 330 x 710
  • Net Weight 55 kg
  • Outdoor Sound Level * 49 dbA
  • Connection Method Flared
  • External Piping Diameter Gas (ø): 1 no X 12.7 + 3 no X 9.52
  • Liquid (ø): 4 no X 6.35
  • Piping Length Max Length (Each): 25 m
  • Max. Length: 60 m
  • Max. Height: 15 m
  • Refrigerant R32
  • No. of connectable indoor units (System) 230, 1, 50
