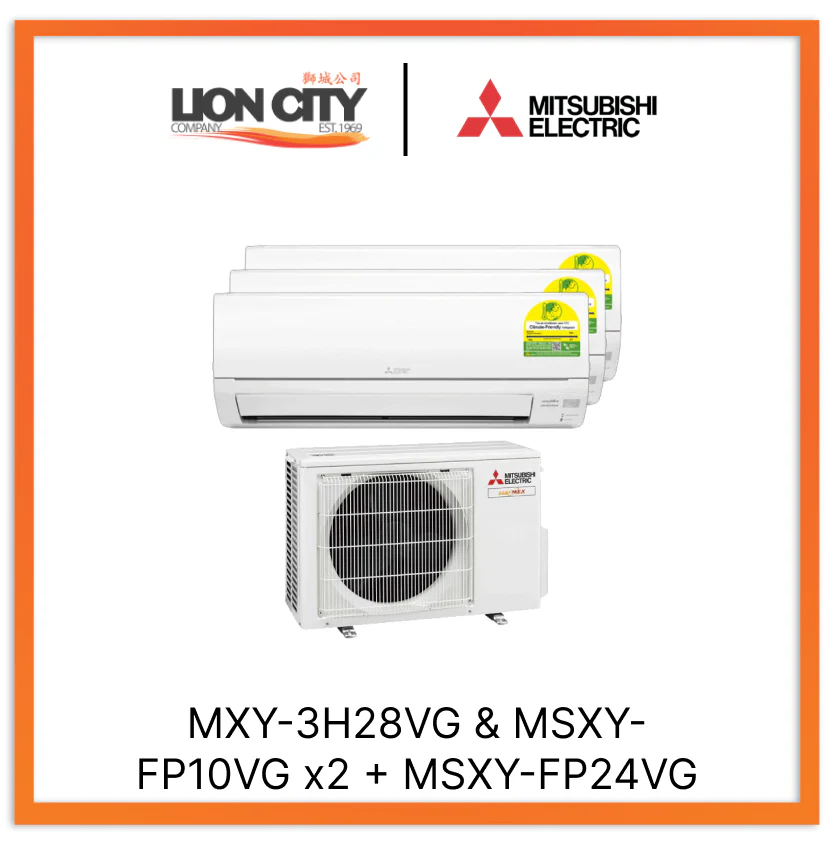

Mitsubishi Electric Starmex System 3 Aircon (9K X2 + 24K)

Mitsubishi Electric Starmex System 3 Aircon (9K X2 + 24K)

MSXY-FP10VG

  • MODEL - INDOOR UNIT MSXY-FP10VG
  • Rated Capacity 2.8 W
  • Power Input 0.028 kW
  • Running Current 0.27 A
  • Airflow Rate 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
  • Sound Level * 19-24-29-36-45 dB(A)
  • Dimension (W X D X H ) 799 x 232 x 290 mm
  • Net Weight 9 kg
  • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm


    MSXY-FP24VG

    • Rated Capacity 7.1 kW
    • Power Input 0.059 kW
    • Running Current 0.52 A
    • Airflow Rate 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
    • Sound Level *30-35-41-45-50 dB(A)
    • Dimension (W X D X H ) 923 x 250 x 305 mm
    • Net Weight 13 kg
    • External Piping Diameter Gas (ø): 12.7 mm Liquid (ø): 6.35 mm

    MXY-3H28VG

    • Capacity (Min - Max) 6.5 (1.3 - 8.9) kW
    • Power Input 1.33 kW
    • Full load COP 4.89
    • Weighted COP ** 6.05
    • Starting Current 5.93 A
    • Running Current 5.93 A
    • Airflow 38.7 CMM (m³/min)
    • Dimension (W X D X H) 840 x 330 x 710
    • Net Weight 54 kg
    • Outdoor Sound Level * 49 dbA
    • Connection Method Flared
    • External Piping Diameter Gas (ø): 3 no X 9.52 mm
    • Liquid (ø): 3 no X 6.35 mm
    • Piping Length Max Length (Each): 25 m
    • Max. Length: 60 m
    • Max. Height: 15 m
    • Refrigerant R32
    • No. of connectable indoor units (System) 230, 1, 50
      $1,399.65

      Original: $3,999.00

      -65%
      Mitsubishi Electric Starmex System 3 Aircon (9K X2 + 24K)—

      $3,999.00

      $1,399.65

      Product Information

      Shipping & Returns

      Description

      MSXY-FP10VG

      • MODEL - INDOOR UNIT MSXY-FP10VG
      • Rated Capacity 2.8 W
      • Power Input 0.028 kW
      • Running Current 0.27 A
      • Airflow Rate 4.1-5.1-6.3-9.1-12.9 CMM (m³/min)
      • Sound Level * 19-24-29-36-45 dB(A)
      • Dimension (W X D X H ) 799 x 232 x 290 mm
      • Net Weight 9 kg
      • External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm


        MSXY-FP24VG

        • Rated Capacity 7.1 kW
        • Power Input 0.059 kW
        • Running Current 0.52 A
        • Airflow Rate 9.3-11.1-13.7-16.1-20.0 CMM (m³/min)
        • Sound Level *30-35-41-45-50 dB(A)
        • Dimension (W X D X H ) 923 x 250 x 305 mm
        • Net Weight 13 kg
        • External Piping Diameter Gas (ø): 12.7 mm Liquid (ø): 6.35 mm

        MXY-3H28VG

        • Capacity (Min - Max) 6.5 (1.3 - 8.9) kW
        • Power Input 1.33 kW
        • Full load COP 4.89
        • Weighted COP ** 6.05
        • Starting Current 5.93 A
        • Running Current 5.93 A
        • Airflow 38.7 CMM (m³/min)
        • Dimension (W X D X H) 840 x 330 x 710
        • Net Weight 54 kg
        • Outdoor Sound Level * 49 dbA
        • Connection Method Flared
        • External Piping Diameter Gas (ø): 3 no X 9.52 mm
        • Liquid (ø): 3 no X 6.35 mm
        • Piping Length Max Length (Each): 25 m
        • Max. Length: 60 m
        • Max. Height: 15 m
        • Refrigerant R32
        • No. of connectable indoor units (System) 230, 1, 50
