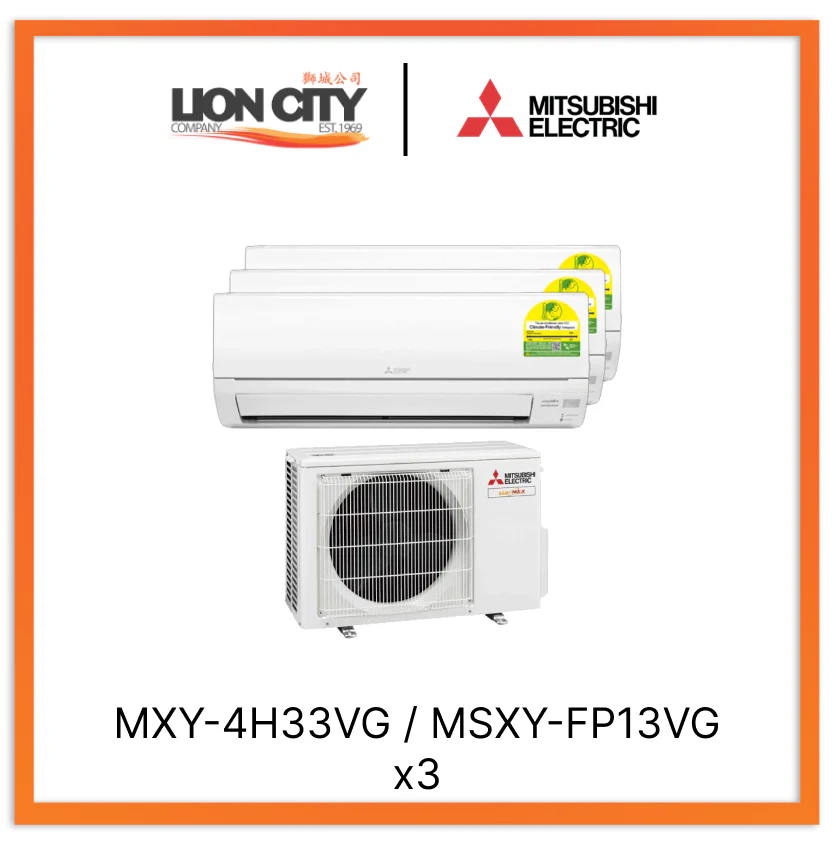

Mitsubishi Electric Starmex System 3 Aircon (12K X3)
MSXY-FP13VG
MXY-4H33VG
- MODEL - INDOOR UNIT MSXY-FP13VG
- Rated Capacity 3.5 W
- Power Input 0.036 kW
- Running Current 0.33 A
- Airflow Rate 4.1-5.1-6.3-9.1-14.1 CMM (m³/min)
- Sound Level * 19-24-30-36-47 dB(A)
- Dimension (W X D X H ) 799 x 232 x 290 mm
- Net Weight 9 kg
- External Piping Diameter Gas (ø): 9.52 mm Liquid (ø): 6.35 mm
- Capacity (Min - Max) 6.9 (1.3 - 10.7) kW
- Power Input 1.42 kW
- Full load COP 4.86
- Weighted COP ** 5.76
- Starting Current 6.37 A
- Running Current 6.37 A
- Airflow 38.7 CMM (m³/min)
- Dimension (W X D X H) 840 x 330 x 710
- Net Weight 55 kg
- Outdoor Sound Level * 49 dbA
- Connection Method Flared
- External Piping Diameter Gas (ø): 1 no X 12.7 + 3 no X 9.52
- Liquid (ø): 4 no X 6.35
- Piping Length Max Length (Each): 25 m
- Max. Length: 60 m
- Max. Height: 15 m
- Refrigerant R32
- No. of connectable indoor units (System) 230, 1, 50
$4,150.00
