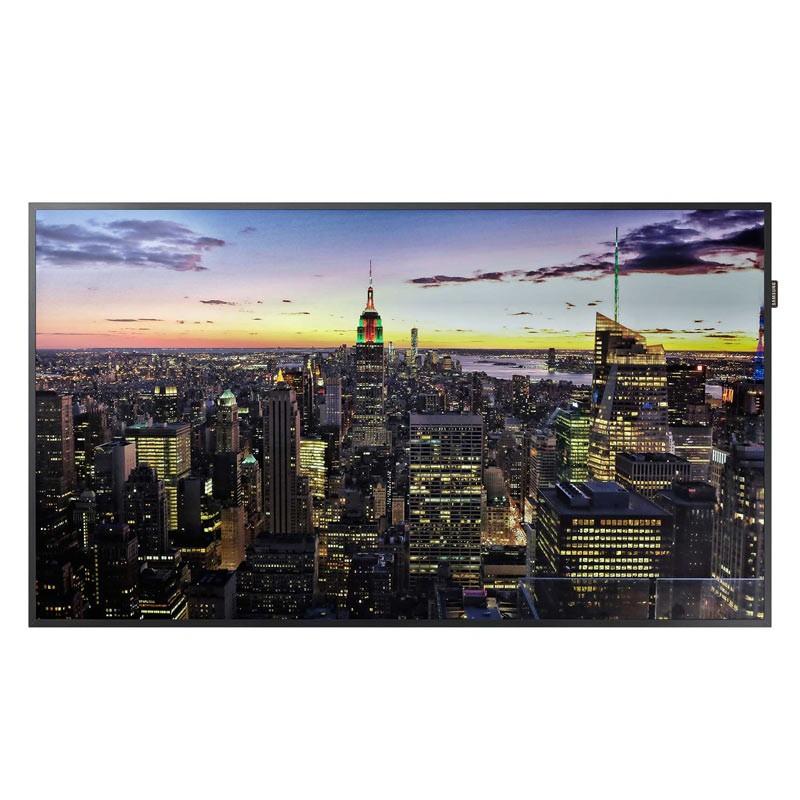

Samsung QM65F 65 inch. Edge-Lit 4K UHD LED Display Smart Signage LH65QMFPLGC/XS

Model : LH65QMFPLGC/XS

Description :

• With stunning 4K UHD quality our QM-F Series commercial displays provide high pixel density, fine detail and exceptional stopping power. All with multi-screen support and reliable 24/7 continuous use to meet around the clock operating requirements from retail spaces and public areas to corporate boardrooms and more. And a non-glare panel with 500nit brightness offers improved visibility of your message.



Features :

Multi-Screen Delivers Multiple Messages

• The Picture by Picture function allows you to display up to 4 content feeds at once, each supporting Full HD 1080p resolution. It’s ideal for displaying multiple messages in retail advertising or for videoconferencing in corporate scenarios.

Non-Glare Panel for Improved Visibility

• The non-glare panel features 500nit brightness to improve visibility of your message.

Reliable 24/7 Around the Clock Operation

• Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation. So your business can meet 24/7 operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.

Stunning 4K UHD Picture Quality

• 3840 x 2160 UHD resolution (4x the number pixels of Full HD 1080p) delivers life-like image quality. Experience a high-impact way to communicate in retail spaces, hospitality, corporate boardrooms, healthcare environments and more.



Specifications :

Panel

• Diagonal Size : 65"
• Type : 60Hz E-LED BLU
• Resolution : 3840*2160 (4K UHD)
• Pixel Pitch(mm) : 0.105 x 0.315 (mm)
• Active Display Area(mm) : 1438.48(H) x 814.52(V)
• Brightness(Typ.) : 500 nit
• Contrast Ratio : 4700:1
• Viewing Angle(H/V) : 178/178
• Response Time(G-to-G) : 8ms (Typ)
• Display Colors : 16.7M(True Display)1.07B(Ditherd 10bit)
• Color Gamut : 72%
• Haze : 25%

Display

• Dynamic C/R : Mega
• H-Scanning Frequency : 30 ~ 81kHZ
• V-Scanning Frequency : 48 ~ 75HZ
• Maximum Pixel Frequency : 148.5MHz

Sound

• Speaker Type : Built in Speaker(10W + 10W)

Connectivity

Input

• RGB : DVI-I(D-Sub Common), Display Port 1.2 (2)
• Video : HDMI 1.4(4)
• Audio : Stereo mini Jack
• Usb : USB (S/W update only)

Output

• RGB : N/A
• Video : N/A
• Audio : Stereo mini Jack
• Power Out : N/A
• External Control : RS232C(in/out), RJ45
• External Sensor : IR
• Tuner : No

Power

• Type : Internal
• Power Supply : AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

• Max[W/h] : 198.0
• Typical[W/h] : 138.0
• BTU(Max) : N/A
• Sleep mode : less than 0.5W
• Off mode : less than 0.5W

Dimension (mm)

• Set : 1456.1 x 835.6 x 37.5
• Package : 1571 X 949 X 212

Weight (kg)

• Set : 23.1
• Package : 31.6

MECHANICAL SPECIFICATION

• VESA Mount (mm) : 400x400
• Protection Glass : N/A
• Stand Type : Foot Stand (Optional)
• Media Player Option Type : SBB-DA/DI
• Bezel Width (mm) : 12.0/12.0/12.0

Operation

• Recommended Usage Hours : 24/7
• Operating Temperature : 0.0 ℃ ~ 40.0 ℃
• Humidity : 10.0 % ~ 80.0 %

Feature

• Key Features : UHD LFD Display
• Special Features
• HW : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x
• SW : FHD 4 PBP Support (2/3/4 PBP),
• Auto Source Switching & Recovery,
• LFD Home UI, Button Lock, DHCP with RJ45 MDC, Hot key option, Plug&Play (Initial Setting)

Internal Player

• Processor : N/A
• On-Chip Cache Memory : N/A
• Clock Speed : N/A
• Main Memory Interface : N/A
• Graphics : N/A
• Storage (FDM) : N/A
• Multimedia : N/A
• IO Ports : N/A
• Operating System : N/A

Certification

• Safety : 60950-1
• EMC : Class A
• Environment : N/A

Accessory

• Included : Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

• Stand : STN-L6500E
• Mount : WMN6575SD
• Specialty -

Media Player

• SBB-DA/DI
