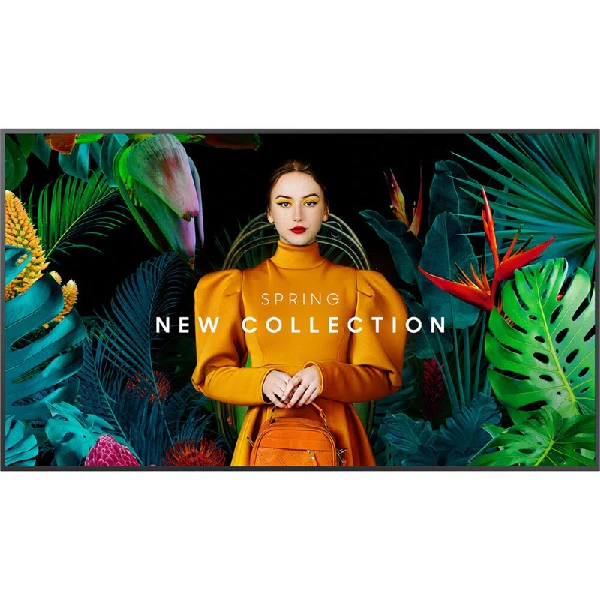

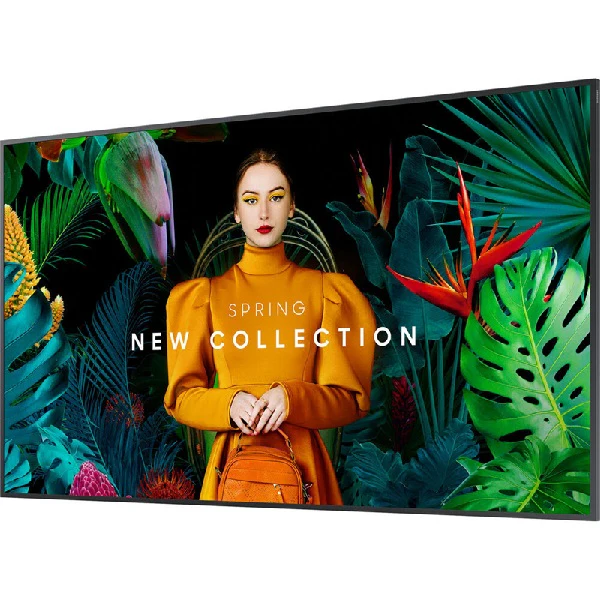

Samsung LH98QHCEBGCXXS 98" QH98C Crystal UHD Signage QHC

Key Features:

• Ultra Slim Depth
• Even Bezel
• Centred VESA Holes

Technical Specifications:

Display:

• Diagonal Size: 98"
• Panel Type: IPS
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV): 562.2 x 562.2
• Brightness (Typ): 350 nit
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72% (NTSC)
• Glass Haze: 25%
• H-Scanning Frequency: 60 Hz
• Maximum Pixel Frequency: 594 MHz
• V-Scanning Frequency: 135 Hz
• Contrast Ratio (Dynamic): Mega


Connectivity:

• HDMI In: 3
• DP In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 2
• IR In: Yes
• Audio In: No
• Audio Out: Stereo Mini Jack
• RS232 In: Yes
• RS232 Out: Yes
• RJ45 In: Yes
• WiFi: Yes
• Bluetooth®: Yes

Power:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 462 W
• Power Consumption (Sleep Mode): 0.5 W

Dimensions:

• Set Dimension (WxHxD): 2195.8 x 1250.8 x 96.5 mm
• Package Dimension (WxHxD): 2369 x 1405 x 350 mm


Weight:

• Set Weight: 83 kg
• Package Weight: 103 kg

Operation Conditions:

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 80%, non-condensing

Mechanical Specification:

• VESA Mount: 800 x 400 mm
• Bezel Width: 17.9mm (even)
• Frame Material: Non-Glossy

SoC:

• OS Version: Tizen 4.0
• Flash Memory Size: 8GB

Certification and Compliance:

• EMC: Class B
• Safety: 60950-1, 62368-1
