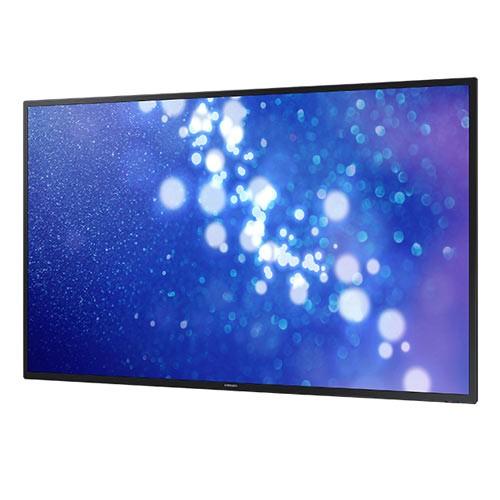

Samsung ED-C Series 75” Direct-Lit LED Display
***LIMITED STOCK, PLEASE CHECK BEFORE ORDER
DISPLAY
Screen Size: 75"
DISPLAY
Brightness: 320 nits
DISPLAY
Resolution: 1920 x 1080
DOWNLOADS
CAD Drawing 1
| SERIES NAME | |
|---|---|
| Series Name | ED-C |
| DISPLAY | |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178°/178° |
| Response Time | 4ms |
| CONNECTIVITY | |
|---|---|
| Input | VGA (D-Sub 15-Pin), DVI, HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack) |
| Output | Stereo Mini Jack, RS232C (thru Stereo Jack) |
| External Control | RS232C (In/Out) (thru Stereo Jack) |
| POWER | |
|---|---|
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 247W / 360W |
| Power Consumption (Standby) | < 1W |
| ENVIRONMENTAL CONDITIONS | |
|---|---|
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| FEATURES | |
|---|---|
| Special | Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel, OPS Compliant |
| VESA Standard Wall-Mount Interface | 400 x 400mm |
| DIMENSIONS | |
|---|---|
| Without Stand (W x H x D) | 65.9" x 37.8" x 2.5" |
| Packaging (W x H x D) | 72.9" x 43.3" x 19.2" |
| Bezel Width | 10.9mm (Bottom 16.9mm) |
| WEIGHT | |
|---|---|
| Set | 63.4 lb. |
| Package | 107.4 lb. |
| SERVICE | |
|---|---|
| Standard Warranty | 3-Year On-Site (Parts/Labor) |
| ACCESSORIES | |
|---|---|
| Included in Box | Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount | WMN-4277S (Landscape Only) WMN-4675MD (Portrait Only) |
| Optional Stand | STN-L75E |
| Touch Overlay | CY-TE75LCC |
| Optional Media Player | PIM-BD7, PIM-BQ7P (OPS compliant) |
| GREEN MANAGEMENT | |
|---|---|
| RoHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Yes |
$7,447.50
Samsung ED-C Series 75” Direct-Lit LED Display—
$7,447.50
