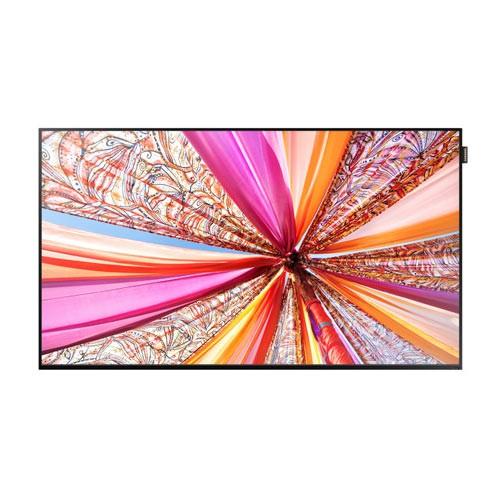

Samsung DH48D Signage LH48DHDPLGCXS

LH48DHDPLGC/XS

• Dynamic C/R50,000:1H-Scanning
• Frequency30 ~ 81kHZ
• V-Scanning Frequency48 ~ 75HZ
• Maximum Pixel Frequency148.5MHz

• InputRGBAnalog D-SUB, DVI-D, Display Port 1.2
• VideoHDMI1 Component(CVBS Common)
• AudioStereo mini Jack
• UsbUSB 2.0 x 1
• OutputRGBDP1.2(Loop-out)
• VideoN/A
• AudioStereo mini Jack
• Power OutN/A
• External ControlRS232C(in/out) thru stereo jack, RJ45
• External SensorIR, Ambient Light

• TypeInternal
• Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
• Power ConsumptionMax[W/h]145
• Typical[W/h]66W(US), 105W(W/W, Kor)
• BTU(Max)494.45
• Sleep modeless than 0.5W
• Off modeless than 0.5W

• Dimension (mm)Set1081.7 x 626 x 52.4 / 1075.1 X 619.4 X 49.9 (w/o Deco Dimension)
• Package1257 X 720 X 130
• Weight (kg)Set12.2 / 11.1 (w/o Deco Weight)
• Package15.7 / 14 (w/o Deco Weight)
• PackageN/A
