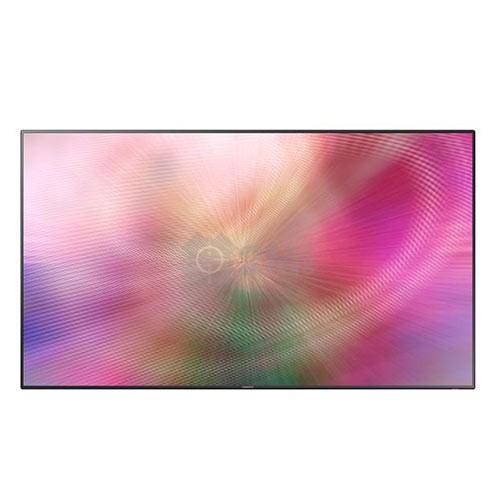

Samsung 75” Edge-Lit LED Display ME75C
Description:
|
DISPLAY |
|
|
H-Scanning Frequency |
30 - 81KHz |
|
Maximum Pixel Frequency |
148.5MHz |
|
V-Scanning Frequency |
48 - 75Hz |
|
PANEL |
|
|
Diagonal Size |
75" |
|
Type |
240Hz LED BLU |
|
Resolution |
1920 x 1080 (16:9) |
|
Pixel Pitch(mm) |
0.2865 (H) x 0.8595 (V) |
|
Active Display Area |
1650.24 (H) x 928.26 (V) |
|
Brightness |
550nit |
|
Contrast Ratio (Dynamic) |
10000:1 (AV Mode) |
|
Viewing Angle (Horizontal/Vertical) |
178 / 178 |
|
Response Time (G-to-G) |
8ms |
|
Display Colour |
10bit Dithering - 1.07Billion |
|
Colour Gamut |
72% |
|
Contrast Ratio |
5000:1 |
|
CONNECTIVITY |
||
|
Input |
RGB |
Analog D-SUB, DVI-D, Display Port 1.2 |
|
|
Video |
HDMI1,HDMI2, Component (CVBS Common) |
|
|
Audio |
Stereo mini Jack |
|
Output |
RGB |
DP1.2 (Loop-out) |
|
|
Audio |
Stereo mini Jack |
|
External Control |
RS232C (in / out) thru stereo jack, RJ45 |
|
|
External Sensor |
IR, Ambient Light |
|
|
MECHANICAL SPECIFICATION |
||
|
Dimension |
Set Dimension (WxHxD) |
1678.2 x 958.7 x 48.6mm |
|
|
Package Dimension (WxHxD) |
1863 x 1173 x 473mm |
|
|
Bezel Width L/R/T |
12.5mm |
|
|
Bezel Width Bottom |
15mm |
|
Weight |
Set Weight |
45.5kg |
|
|
Package Weight |
65.6kg |
|
VESA Mount |
400 x 400mm |
|
|
Stand Type |
Foot Stand (Optional) |
|
|
Media Player Option Type |
Embbeded, SBB-C / PIM-B (Attachable) |
|
