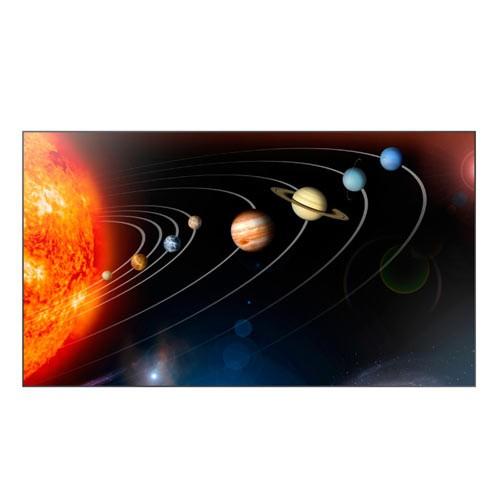

Samsung 55 inch. Direct-Lit LED Display LH55UDDPLBBX

Samsung 55 inch. Direct-Lit LED Display LH55UDDPLBBX

LH55UDDPLBB/XS

Description:

The Samsung UD55D advances LCD video wall technology by reducing the bezel-to-bezel (BtB) spec from 5.5mm to 3.5mm compared to predecessor models. Along with factory-tuned color calibration for consistency across multiple displays and our embedded SMART Signage Platform (SSP), you can efficiently achieve seamless matrices, while LED backlighting reduces power consumption in large installations.



  • Ultra-Narrow Bezel Width at 3.5mm BtB for Virtually Seamless Video Walls
  • Embedded SSP System-on-Chip (SoC) Technology Can Eliminate the Need for External Media Players
  • Factory-Tuned for Color Uniformity Right Out of the Box
  • Daisy Chain Up to 4 Displays Over Display Port 1.2 to Achieve 4K x 2K UHD Resolution

    •

    FULL SPECIFICATIONS

  • RESOLUTION: 1920 x 1080
  • BRIGHTNESS: Max 700 cd/m2
  • SMART SIGNAGE PLATFORM: Yes
  • 24/7 OPERATION: Yes
  • VIDEO WALL/THIN BEZEL: Yes
    •

    Series Name
  • SERIES NAME: UD55D
    •
    Display
  • SCREEN SIZE: 55"
  • PANEL TECHNOLOGY: 60Hz Direct-Lit LED
  • RESOLUTION: 1920 x 1080
  • BRIGHTNESS: Max 700 cd/m2
  • CONTRAST RATIO (TYPICAL): 3500:1
  • VIEWING ANGLE (H/V): 178°/178°
  • RESPONSE TIME: 8ms
    •
    Connectivity
  • INPUT
  • RGB:Analog D-SUB, DVI-D, Display Port 1.2
  • Video: HDMI1,HDMI2, Component(CVBS Common)
  • Audio: Stereo mini Jack
  • OUTPUTEXTERNAL CONTROL: RS232C(in/out), RJ45
  • RGB: DP1.2(Loop-out)
  • Audio: Stereo mini Jack
  • SENSOR: Detachable type(IR, Ambient)
    • Power
  • POWER SUPPLY: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
  • POWER CONSUMPTION (TYPICAL/MAX): 175/209
  • POWER CONSUMPTION (STANDBY): Less Than 0.5W
    •
    Environmental Conditions
  • OPERATING TEMPERATURE: 0℃~ 40℃
  • OPERATING HUMIDITY: 10~80%
                                                                  $9,227.68
