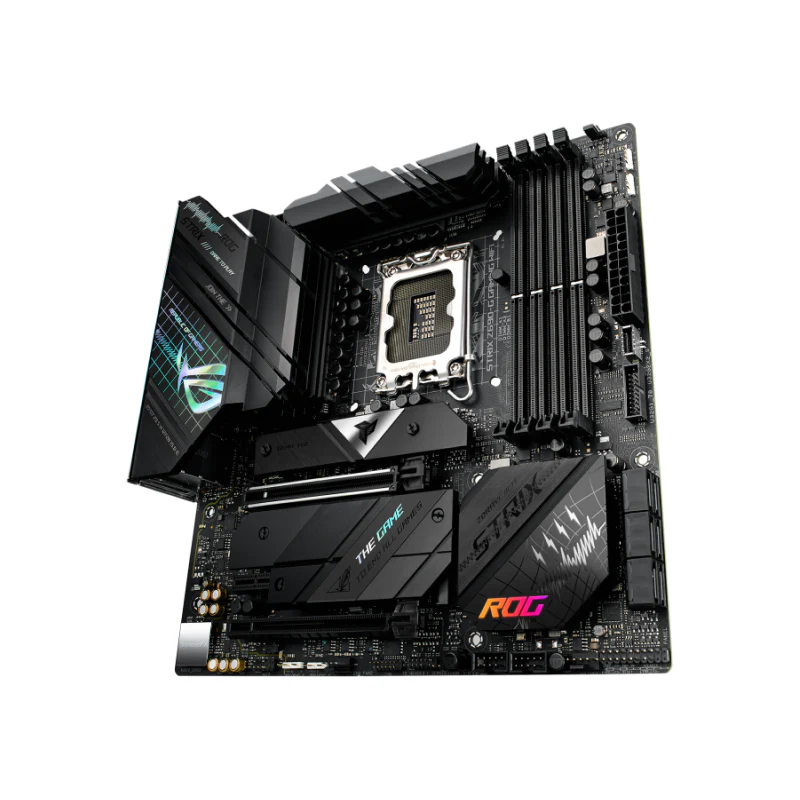

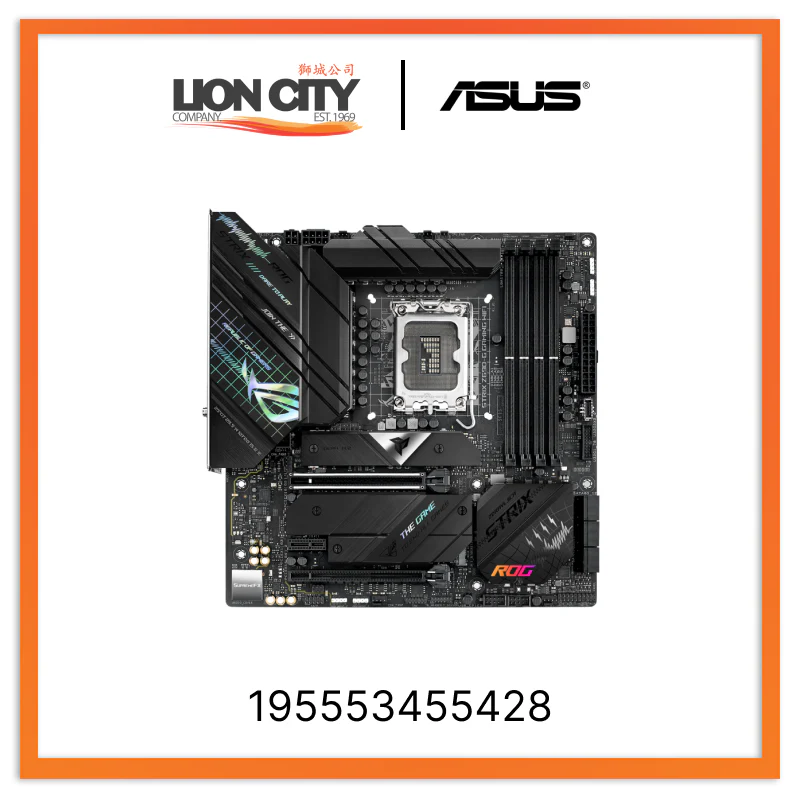

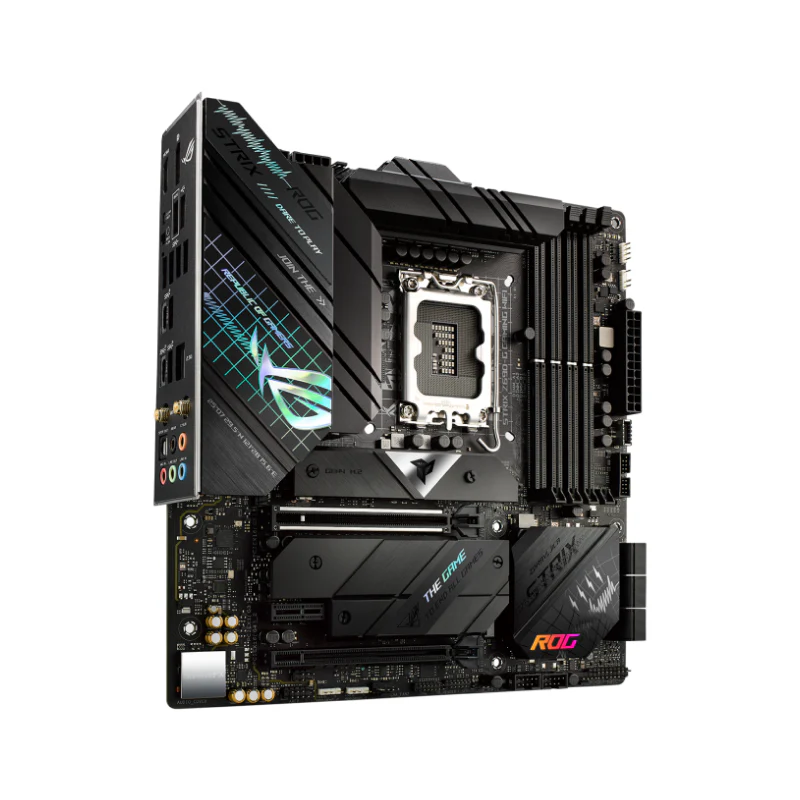

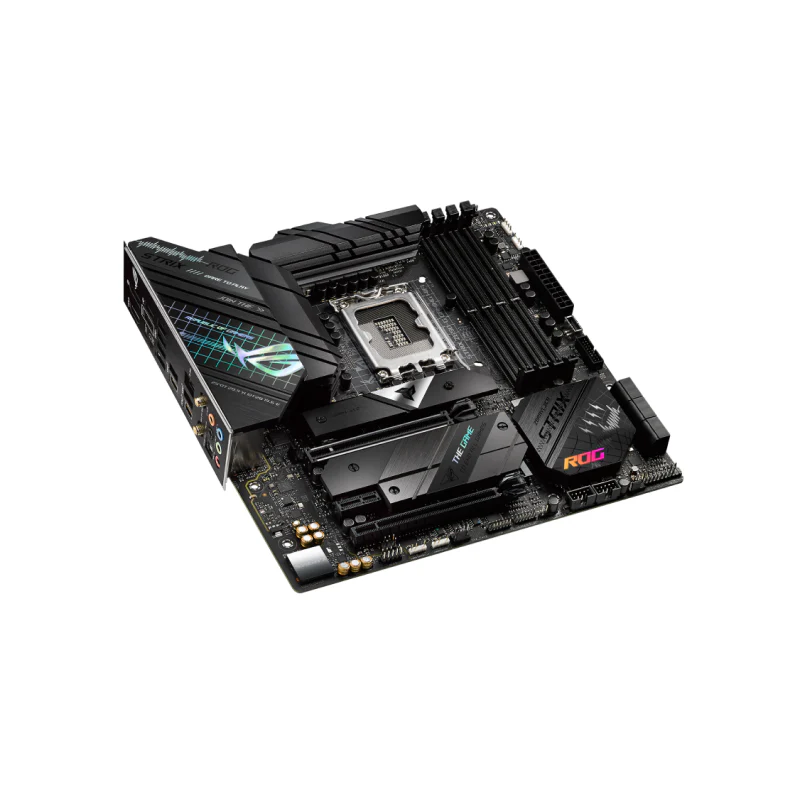

ROG STRIX Z690-G GAMING WIFI 195553455428 Motherboards

Intel® Z690 LGA 1700 mATX motherboard with PCIe® 5.0, 14+1 DrMos, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe® 4.0 NVMe® SSD support, M.2 backplates, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 10 nm CPU

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• * Refer to www.asus.com for CPU support list.

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

• OptiMem II

• *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

• 1 x DisplayPort**

• 1 x HDMI® port***

• *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• ** Support 8K@60Hz as specified in DisplayPort 1.4.

• *** Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

• Intel® Z690 Chipset**

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 3.0 x1 slot

• * Please check PCIe bifurcation table in support site.

• ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
