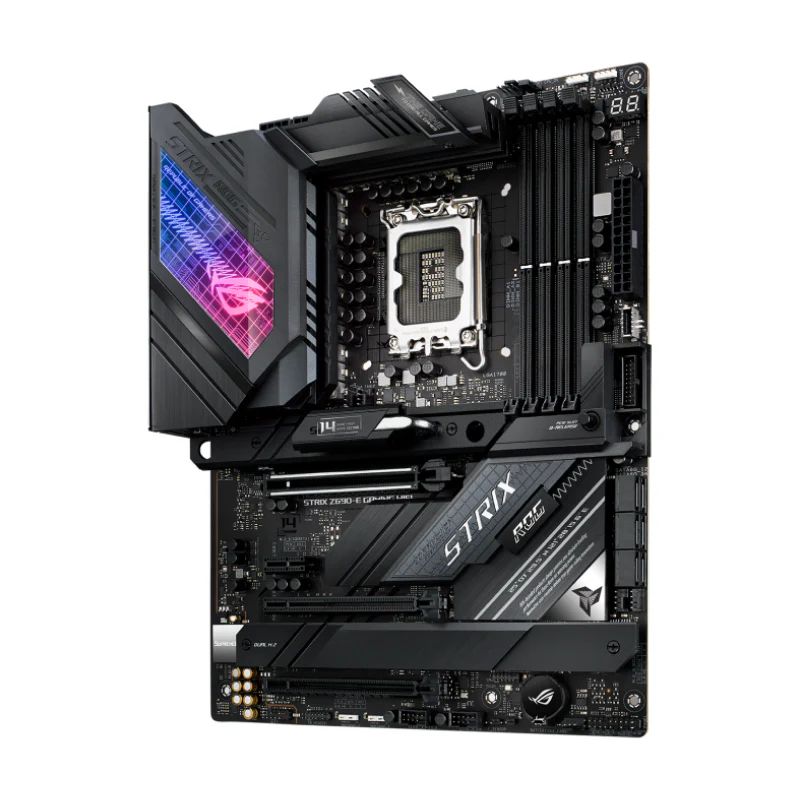

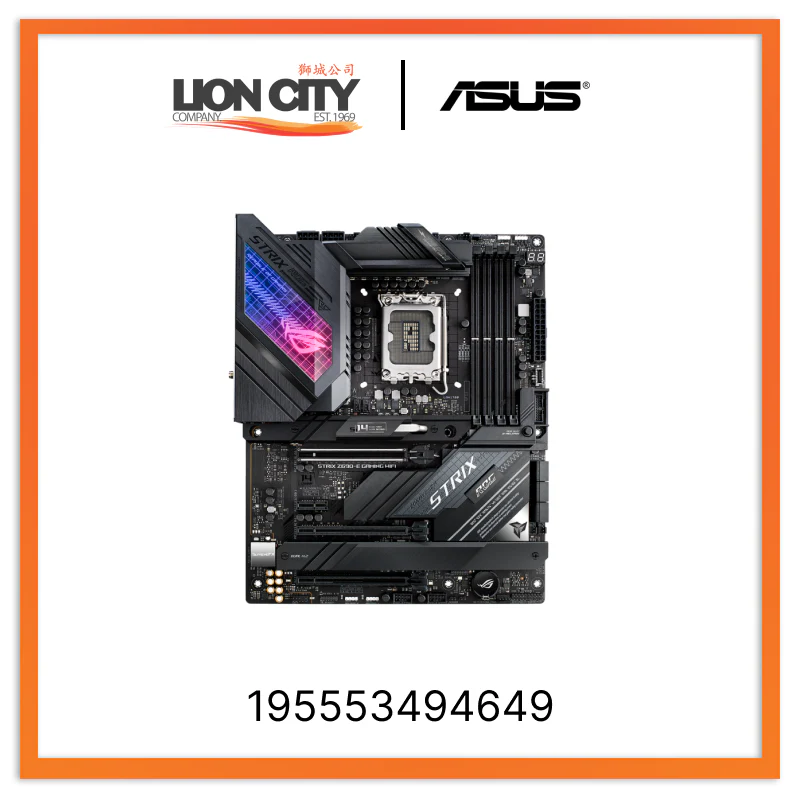

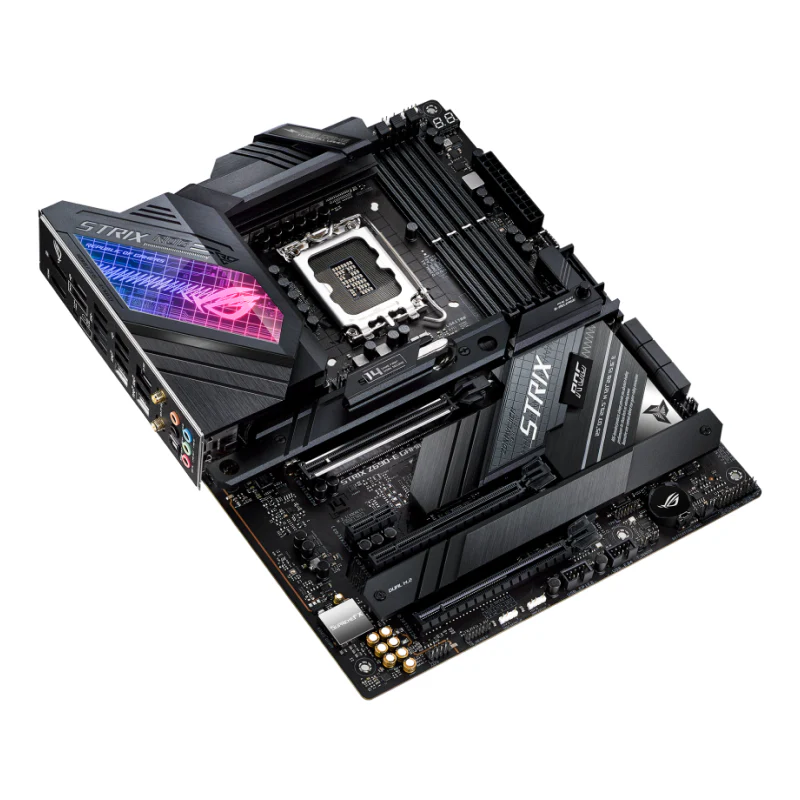

ROG STRIX Z690-E GAMING WIFI 195553494649 Motherboards

Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, Intel® 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIe® 5.0 NVMe® SSD support, M.2 Combo-Sink, M.2 backplate, PCIe® Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
•
• * Refer to www.asus.com for CPU support list.
•
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
•
• Dual Channel Memory Architecture
•
• Supports Intel® Extreme Memory Profile (XMP)
•
• OptiMem II
•
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

•  1 x DisplayPort**
•  1 x HDMI®***
•
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
•
• ** Support 8K@60Hz as specified in DisplayPort 1.4.
•
• *** Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 14th & 13th & 12th Gen Processors*
•
• 1 x PCIe 5.0 x16 slot**
•
• Intel® Z690 Chipset***
•
• 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD)
•
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
•
• 1 x PCIe 3.0 x1 slot
•
• * Please check PCIe bifurcation table in Chapter 1 of user guide.
•
• ** When M.2_1 is occupied with SSD device, PCIEX16(G5)_1 will run x8 only.
•
• *** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
• **** The ThunderboltTM card can only be used when installed to the PCIEX16(G3) slot. Ensure to install your ThunderboltTM card to the PCIEX16(G3) slot.
