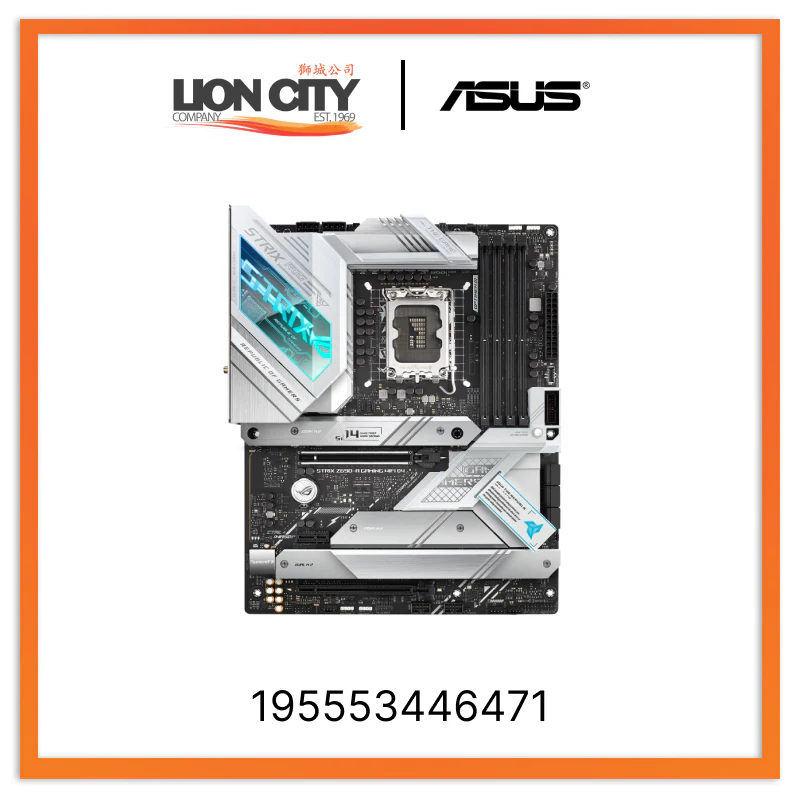

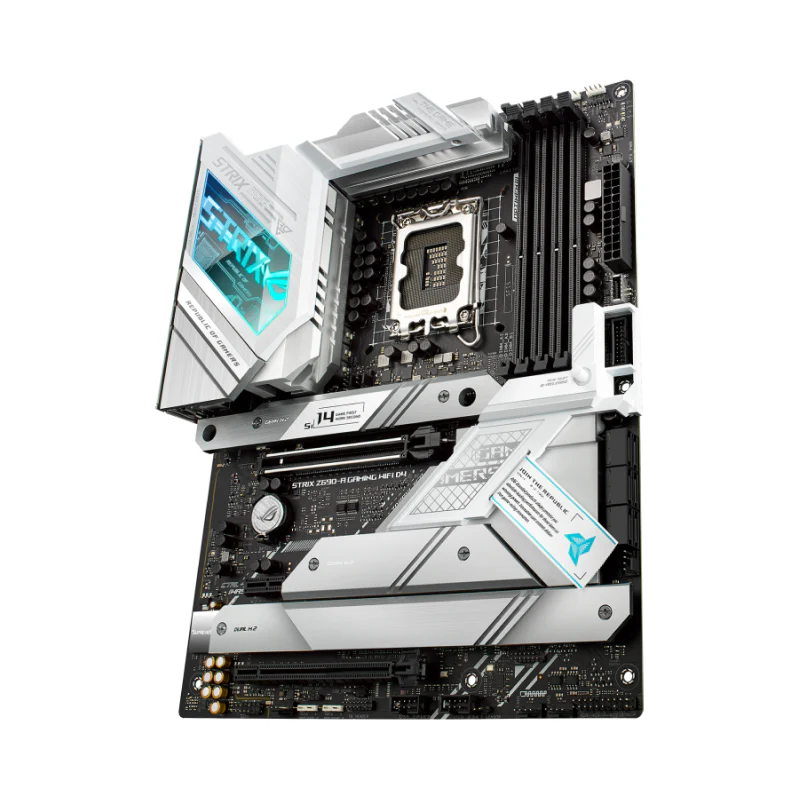

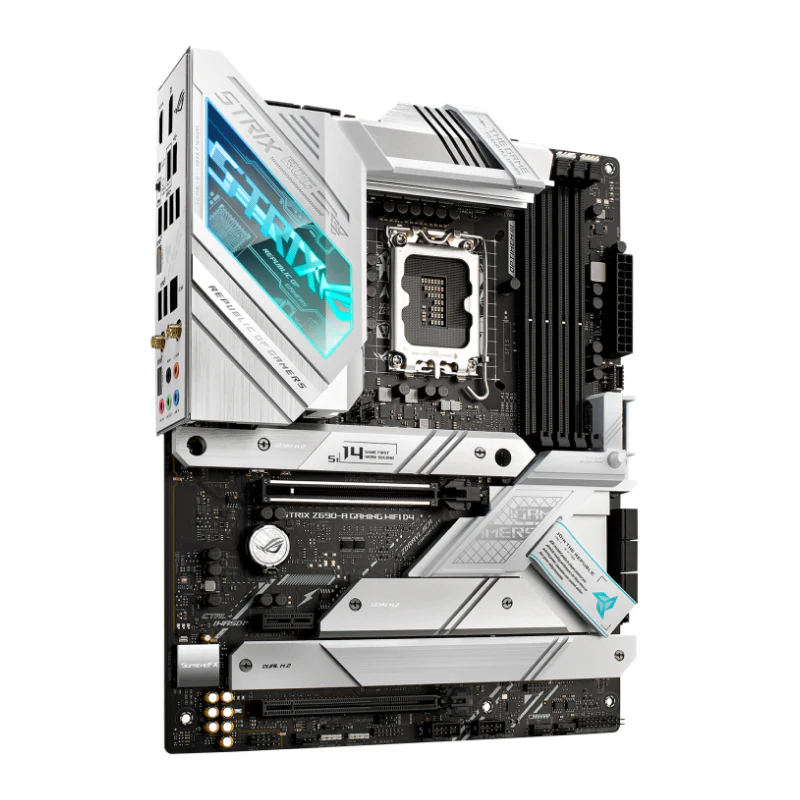

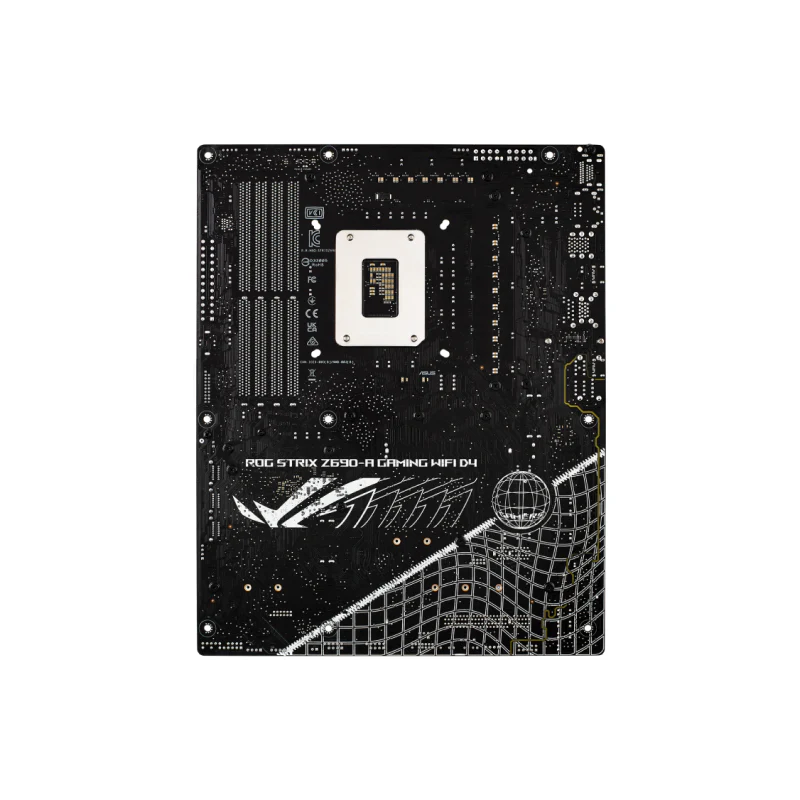

ROG STRIX Z690-A GAMING WIFI D4 195553446471 Motherboards

Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• OptiMem III

• *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

• 1 x DisplayPort**

• 1 x HDMI® port***

• *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• ** Support 8K@60Hz as specified in DisplayPort 1.4.

• ***Support 4K@60Hz as specified in HDMI® 2.1.

• **** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)

• 1 x PCIe 5.0/4.0/3.0 x16 slot*

• Intel® Z690 Chipset**

• 1 x PCIe 3.0 x16 slot (supports x4 mode)*

• 1 x PCIe 3.0 x1 slot

• * Please check PCIe bifurcation table in User Guide Chapter 1 // support site.

• ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
