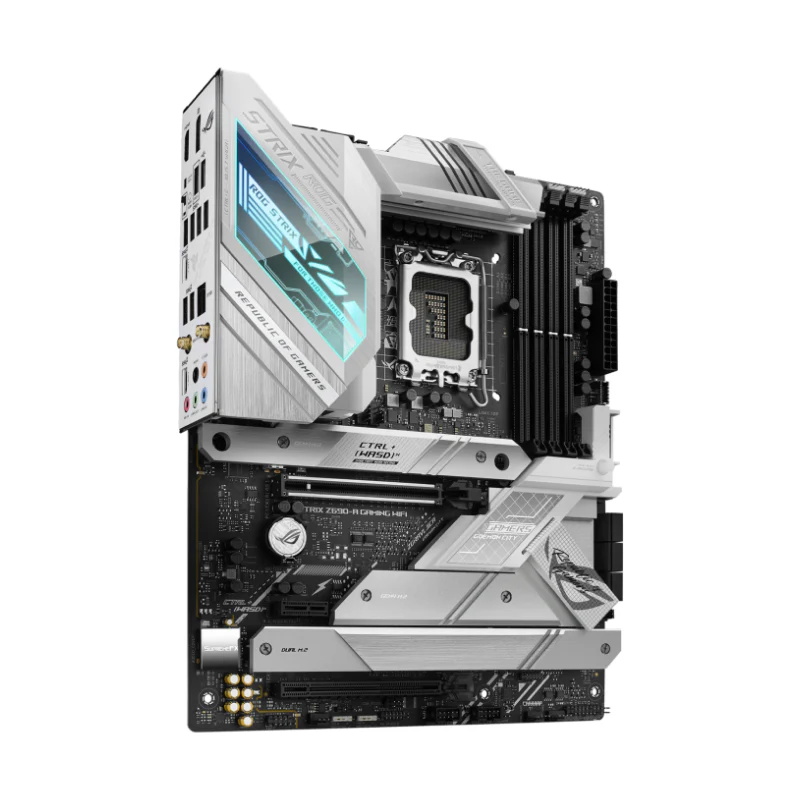

ROG STRIX Z690-A GAMING WIFI 195553699037 Motherboards
Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 16+1 DrMos, DDR5, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E, Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe® SSD support, M.2 backplate, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting
CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0***
- Refer to www.asus.com for CPU support list.**
- Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Z690
Memory
- Max Memory Size:
- 192GB
- 4 x DIMM, Max. 196GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
- 1 x DisplayPort**
- 1 x HDMI®***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Support 8K@60Hz as specified in DisplayPort 1.4
- *** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
- Intel® Core™ Processors (14th & 13th & 12th Gen)
- 1 x PCIe 5.0/4.0/3.0 x16 slot*
- Intel® Z690 Chipset**
- 1 x PCIe 3.0 x16 slot (supports x4 mode)*
- 1 x PCIe 3.0 x1 slot
- * Please check PCIe bifurcation table in User Guide Chapter 1 // support site.
- ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
$692.40
ROG STRIX Z690-A GAMING WIFI 195553699037 Motherboards—
$692.40
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 16+1 DrMos, DDR5, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E, Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe® SSD support, M.2 backplate, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting
CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0***
- Refer to www.asus.com for CPU support list.**
- Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Z690
Memory
- Max Memory Size:
- 192GB
- 4 x DIMM, Max. 196GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
- 1 x DisplayPort**
- 1 x HDMI®***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Support 8K@60Hz as specified in DisplayPort 1.4
- *** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
- Intel® Core™ Processors (14th & 13th & 12th Gen)
- 1 x PCIe 5.0/4.0/3.0 x16 slot*
- Intel® Z690 Chipset**
- 1 x PCIe 3.0 x16 slot (supports x4 mode)*
- 1 x PCIe 3.0 x1 slot
- * Please check PCIe bifurcation table in User Guide Chapter 1 // support site.
- ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
