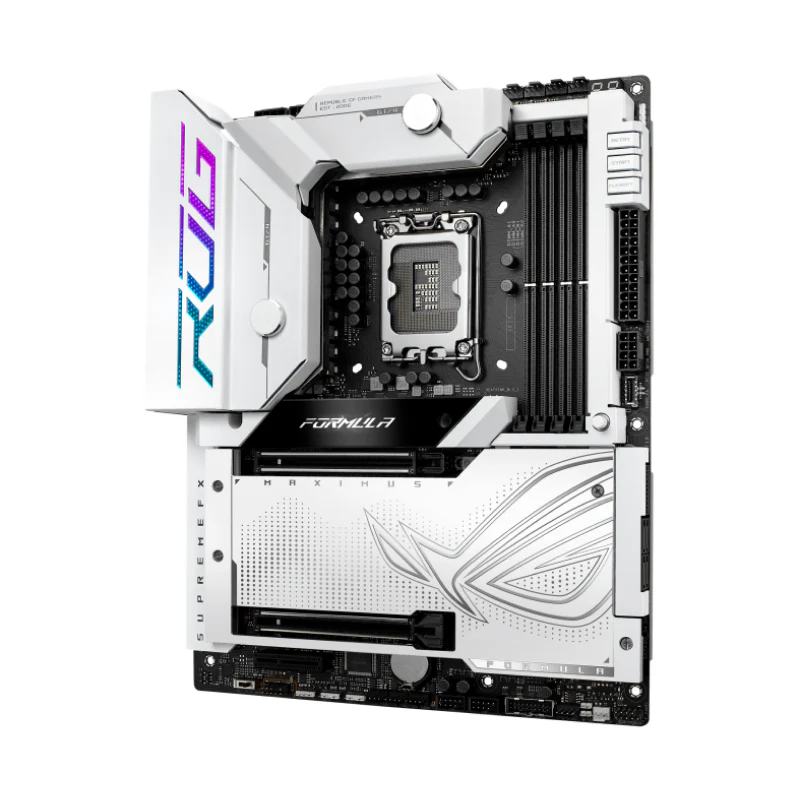

ROG MAXIMUS Z790 FORMULA 197105360976
The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.
CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel® Z790 Chipset
Memory
-
4 x DIMM slots, max. 192GB, DDR5 8000+
Non-ECC, Un-buffered Memory*(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile II (AEMP II)
- Supports DIMM Flex
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 1 x HDMI™ port**
- 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports 4K@60Hz as specified in HDMI 2.1.
- *** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
- Intel® Core™ Processors (14th & 13th & 12th Gen)*
- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
- Intel® Z790 Chipset
- 1 x PCIe 4.0 x4 slot
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
- *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
$1,282.80
ROG MAXIMUS Z790 FORMULA 197105360976—
$1,282.80
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic. Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.
CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel® Z790 Chipset
Memory
-
4 x DIMM slots, max. 192GB, DDR5 8000+
Non-ECC, Un-buffered Memory*(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile II (AEMP II)
- Supports DIMM Flex
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
- 1 x HDMI™ port**
- 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports 4K@60Hz as specified in HDMI 2.1.
- *** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
- Intel® Core™ Processors (14th & 13th & 12th Gen)*
- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
- Intel® Z790 Chipset
- 1 x PCIe 4.0 x4 slot
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
- *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
