ROG MAXIMUS Z790 APEX ENCORE 197105361126 Motherboards

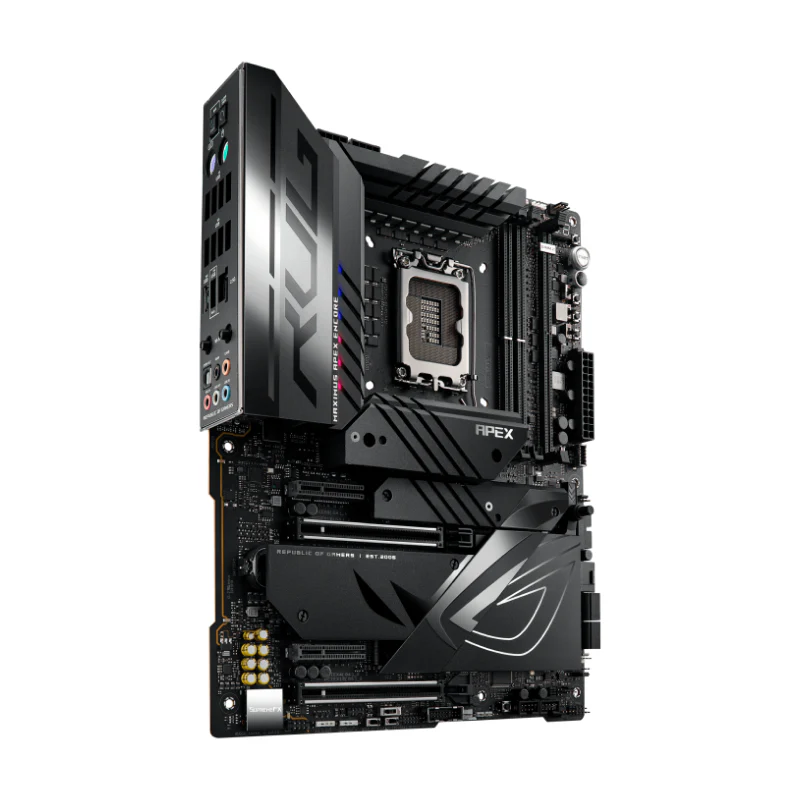

ROG Maximus Z790

Apex Encore

The ROG Maximus Z790 Apex Encore boasts a sleek all-black design, robust appearance, upgraded power solution and an onboard PCIe® 5.0 M.2 slot for lightning-fast storage. Meanwhile, the ROG Memory Fan Kit offers active cooling to let tinkerers push DDR5 to the limit. And support for Intel® Core™ 14th generation processors lets users set new benchmarks for the wealth of activities that demand peak performance. This motherboard is the ultimate choice for enthusiasts and overclockers seeking style and power in their gaming setup.

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 2 x DIMM, Max. 96GB, DDR5 8400+(OC)/8200+(OC)/8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MT/s Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile II (AEMP II)
• Supports DIMM Flex
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
• configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• - Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• - For optimal memory overclocking results, please ensure to install the bundled ROG Memory Fan Kit.

• Intel® CoreTM Processors (14th & 13th & 12th Gen)*
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
• Intel® Z790 Chipset
• 2 x PCIe 4.0 x4 slot
• * Please check the PCIe bifurcation table
• on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** M.2_1 shares bandwidth with PCIEX16(G5)_2 and PCIEX16(G5)_1. When M.2_1 is occupied with SSD device,
• PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
