PRIME Z790-P WIFI-CSM 195553937252 Motherboards

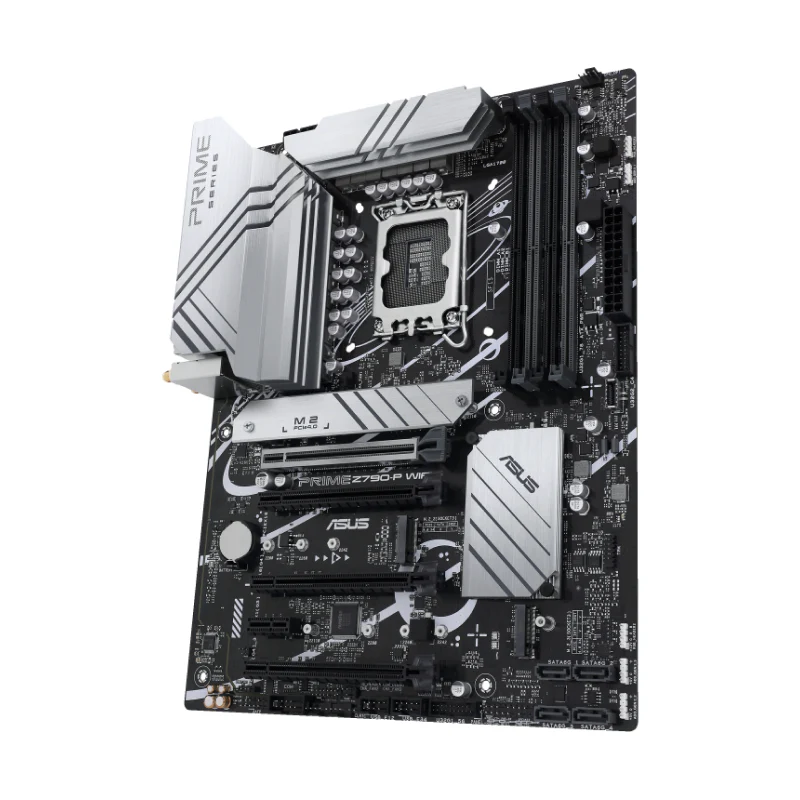

ASUS Prime Z790-P WIFI-CSM, an Intel Z790 LGA 1700 ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR5, Intel WIFI 6, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**
• 1 x HDMI® port***
• *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)*
• 1 x PCIe 5.0 x16 slot
• Intel® Z790 Chipset
• 3 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 3.0 x1 slot
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
