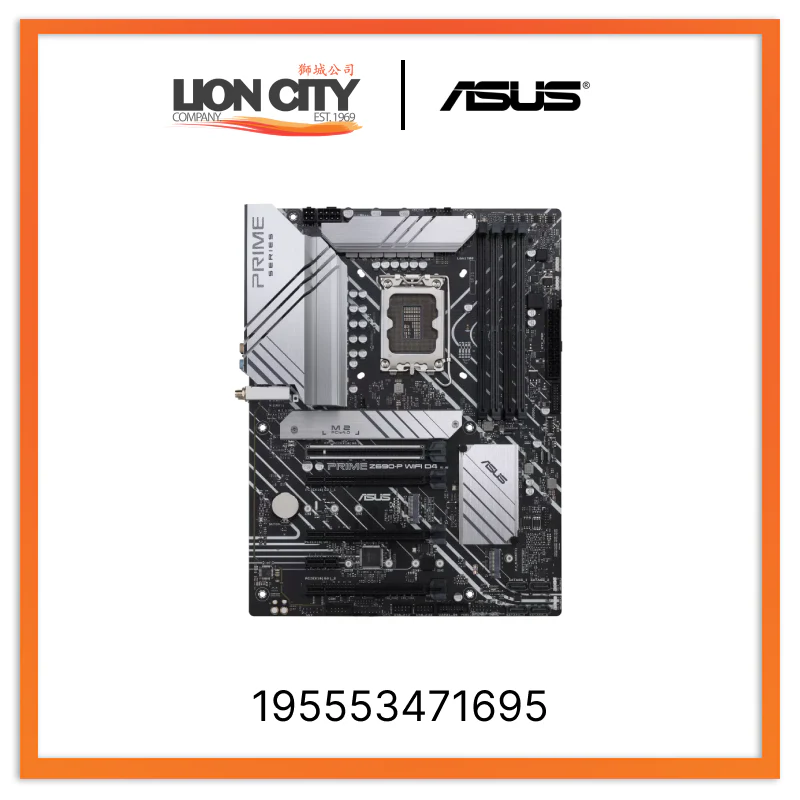

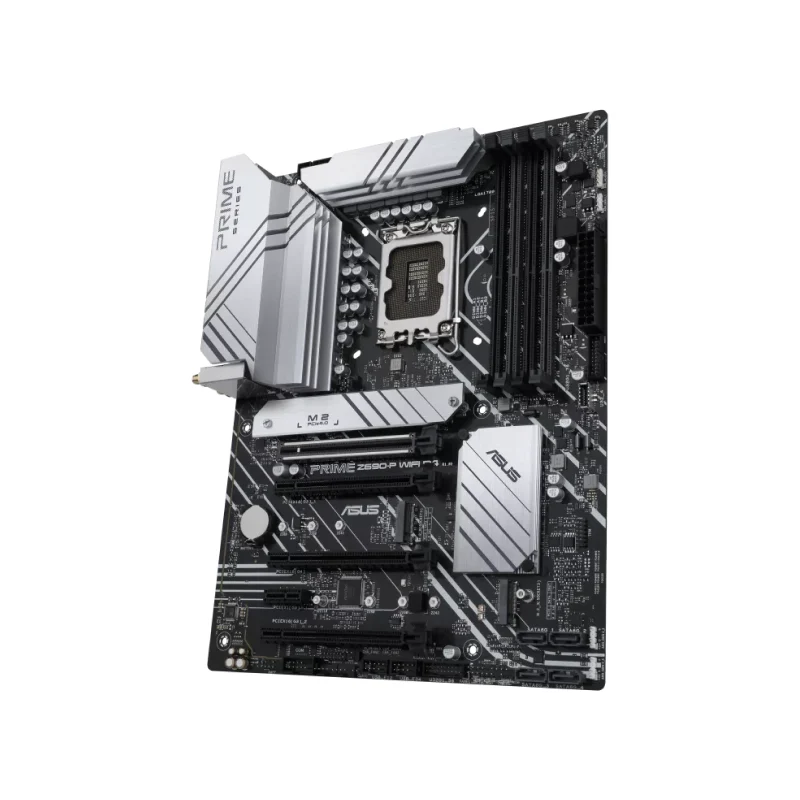

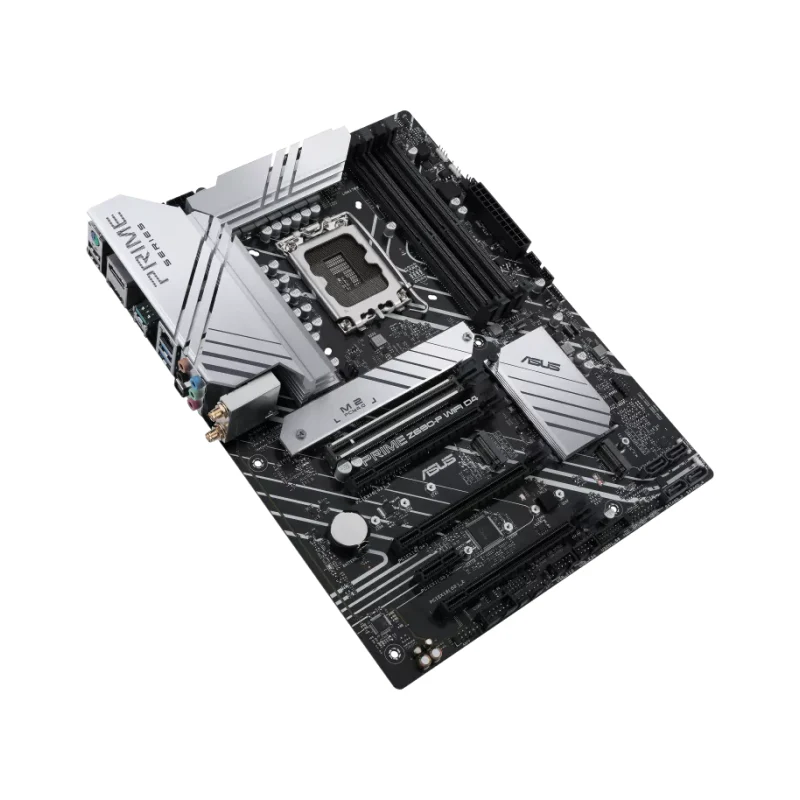

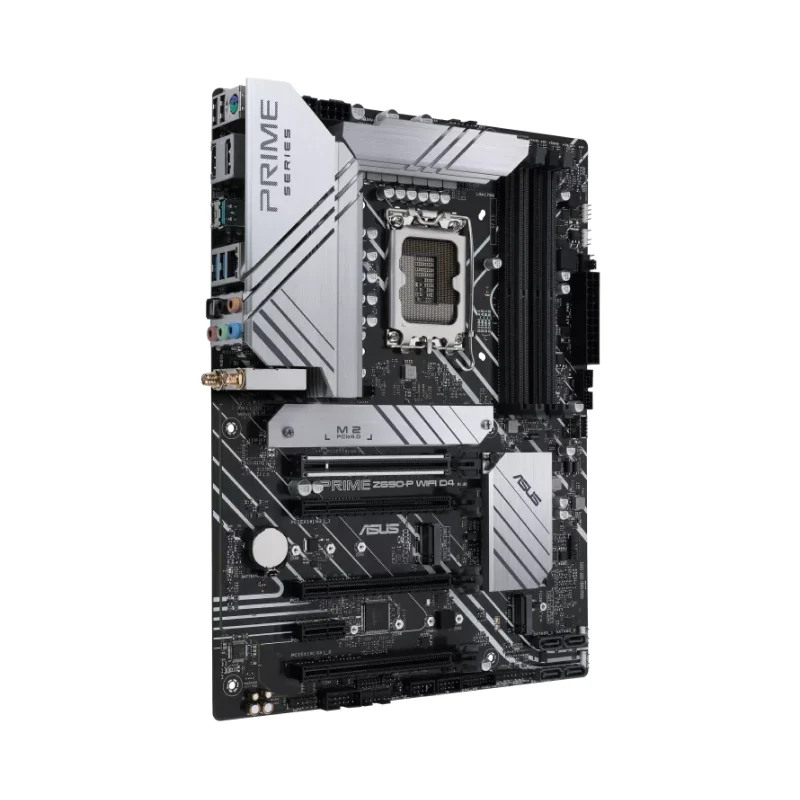

PRIME Z690-P WIFI D4 195553471695 Motherboards

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Memory

• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/ 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

• 1 x DisplayPort**
• 1 x HDMI® Port***
• *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)*
• 1 x PCIe 5.0/4.0/3.0 x16 slot
• Intel® Z690 Chipset**
• 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x16 slots (support x4 mode)
• 1 x PCIe 3.0 x1 slot
• * Please check PCIe bifurcation table in support site.
• ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
