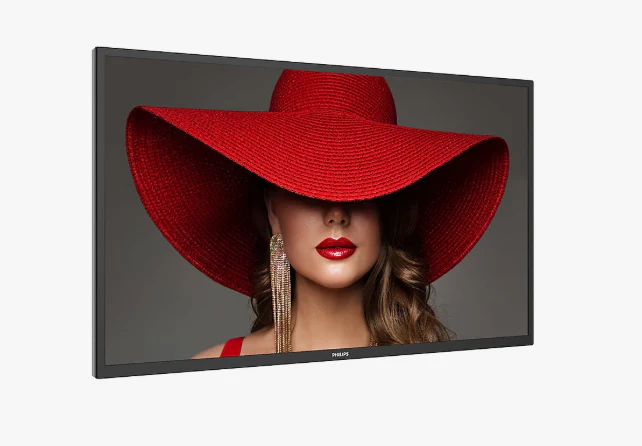

Phillips Signage Solutions D-Line Display 32BDL4650D/00

Technical Specifications

Picture & Display

• Screen Size: 32 inch / 81.28 cm (Diagonal)

• Panel Technology: ADS (Advanced Super Dimension Switch)

• Native Resolution: 1920 x 1080p @ 60Hz

• Aspect Ratio: 16:9

• Brightness: 400 cd/m²

• Contrast Ratio: 1200:1 (Typical)

• Dynamic Contrast Ratio: 500,000:1

• Response Time: 8 ms (Typical)

• Viewing Angles: 178° Horizontal / 178° Vertical

• Display Colors: 16.7 Million

• Pixel Pitch: $0.36375 (H) \times 0.36375 (V)$ mm

• Operating System: Android 11

• Haze: 25%

• Picture Enhancement Features:

  • 3/2 - 2/2 motion pull down

  • Motion compensated deinterlacing

  • Dynamic contrast enhancement

  • Progressive scan

---

Connectivity

• Video Input:

  • 2x HDMI 2.0

  • 1x DisplayPort 1.4

  • 1x DVI-I (VGA via DVI supported)

  • 2x USB 3.0

• Video Output: * 1x DisplayPort 1.4

• Audio Ports:

  • 3.5 mm Audio Input jack

  • 3.5 mm Audio Output jack

• External Control:

  • RJ45 (Ethernet)

  • RS232C (In/Out) via 2.5 mm jack

  • IR (In/Out) via 3.5 mm jack

• Other Connections:

  • 4G/LTE antenna connectors

  • 1x Micro USB (OTG)

  • 1x USB 2.0
