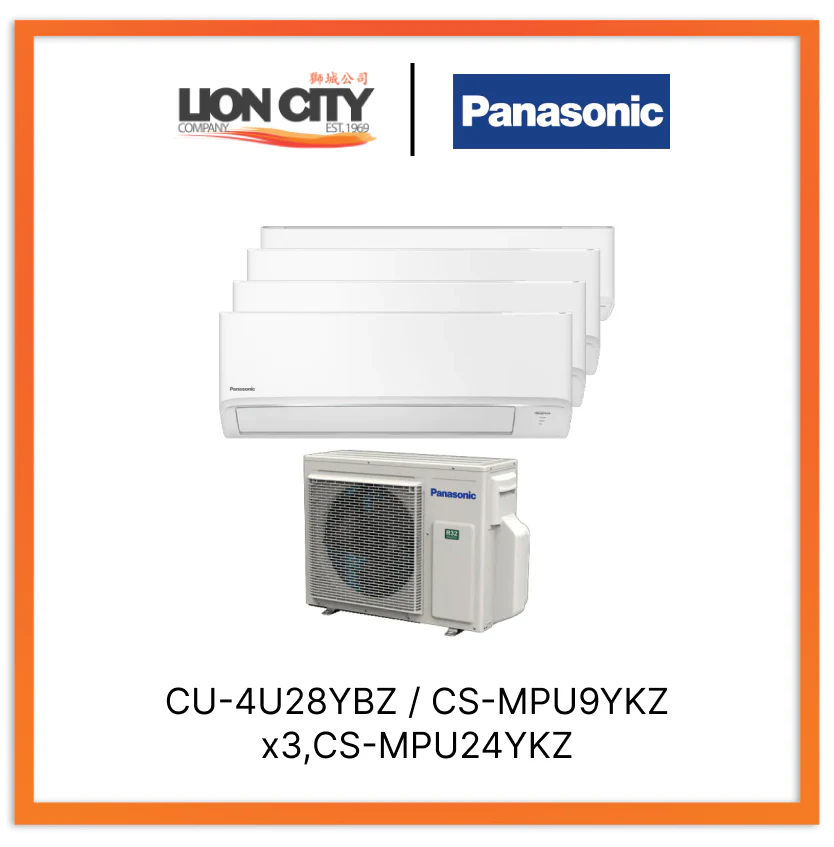

Panasonic U System 4 Aircon (9K X3 + 24K)

Panasonic U System 4 Aircon (9K X3 + 24K)

CU-4U28YBZ

  • Model CU-4U28YBZ
  • Cooling Capacity (min-max) 8.00 (2.80 ~ 10.20) kW
  • 27,300 (9,550 ~ 34,800) Btu/h
  • Power Source Single Phase, 220V-240V, 50Hz
  • Maximum Connectable Capacity 16.2 kW
  • Maximum Connectable Indoor 4 Units
  • Running Current 9.4 - 8.6 A
  • Power Input (min-max) 2,000 (540 - 3,200) W
  • EER (min-max) 13.65 (17.69 - 10.88) Btu/hW
  • COP (min-max) 4.00 (5.19 - 3.19) W/W
  • Weighted COP 4.75 W/W

CS-MPU9YKZ

  • Model CS-MPU9YKZ
  • Cooling Capacity 2.8 kW
  • 9,550 Btu/h
  • Power Source Single Phase, 220V-240V, 50Hz
  • Sound Pressure Level High/Low 43/28 dB(A)
  • Air Circulation High 12.7 m³/min (450 ft³/min)
  • Height 290 mm
  • Width 779 mm
  • Depth 209 mm

    CS-MPU24YKZ

    • Model CS-MPU24YKZ
    • Cooling Capacity 6 kW
    • 20,500 Btu/h
    • Power Source Single Phase, 220V-240V, 50Hz
    • Sound Pressure Level High/Low 49/39 dB(A)
    • Air Circulation High 20.2 m³/min (715 ft³/min)
    • Height 295 mm
    • Width 1,040 mm
    • Depth 244 mm
    • Net Weight 14 kg
    • Refrigerant Pipe Diameter Liquid Side ø 6.35 mm Gas Side ø 12.70 mm
    • Power Supply Outdoor
      $1,568.00

      Original: $4,480.00

      -65%
      Panasonic U System 4 Aircon (9K X3 + 24K)—

      $4,480.00

      $1,568.00
