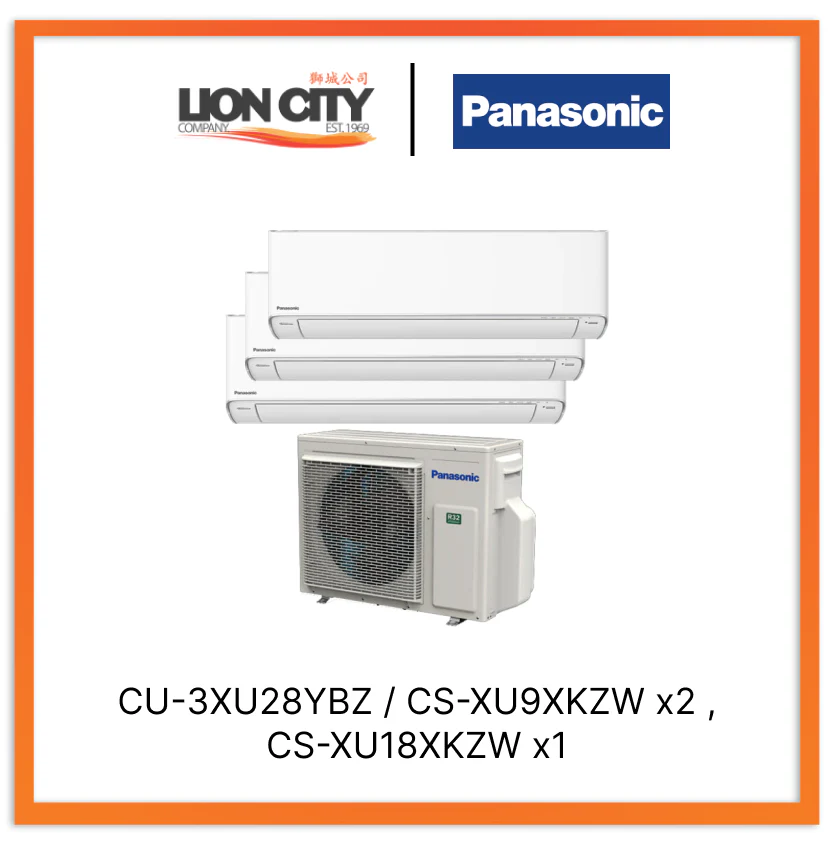

Panasonic Xu System 3 Aircon (9K X2 + 18K)

CU-3XU28YBZ

• Model CU-3XU28YBZ
• Cooling Capacity (min-max) 6.60 (2.80 ~ 9.80) kW
• 22,500 (9,550 - 33,400) Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity 12.7 kW
• Maximum Connectable Indoor 3 Units
• Running Current 6.2 - 5.7 A
• Power Input (min-max) 1,340 (520 - 2,500) W
• EER (min-max) 16.79 (18.37 - 13.36) Btu/hW
• COP (min-max) 4.93 (5.38 - 3.92) W/W
• Weighted COP 5.70 W/W

CS-XU9XKZW

• Model Indoor (50 Hz) CS-XU9XKZW
• Outdoor CU-XU9XKZW
• Cooling Capacity (min-max) 2.70 (0.98-3.60) kW
• 9,210 (3,340-12,300) Btu/h
• COP (min-max) 5.19 (5.30-4.00) W/W
• EER (min-max) 17.71 (18.05-13.67) Btu/hW
• Weighted COP 5.8 W/W
• Voltage 220-240 V
• Current 2.6-2.4 A
• Power Input (min-max) 520 (185-900) W
• Moisture Removal 1.6 L/h
• 3.4 Pt/h

CS-XU18XKZW

• Model Indoor (50 Hz) CS-XU18XKZW
• Outdoor CU-XU18XKZW
• Cooling Capacity (min-max) 5.00 (1.10-6.21) kW
• 17,100 (3,750-21,200) Btu/h
• COP (min-max) 4.35 (4.40-3.65) W/W
• EER (min-max) 14.87 (15.00-12.47) Btu/hW
• Weighted COP 5.69 W/W
• Voltage 220-240 V
• Current 5.5-5.1 A
• Power Input (min-max) 1,150 (250-1,700) W
• Moisture Removal 2.8 L/h
• 5.9 Pt/h
