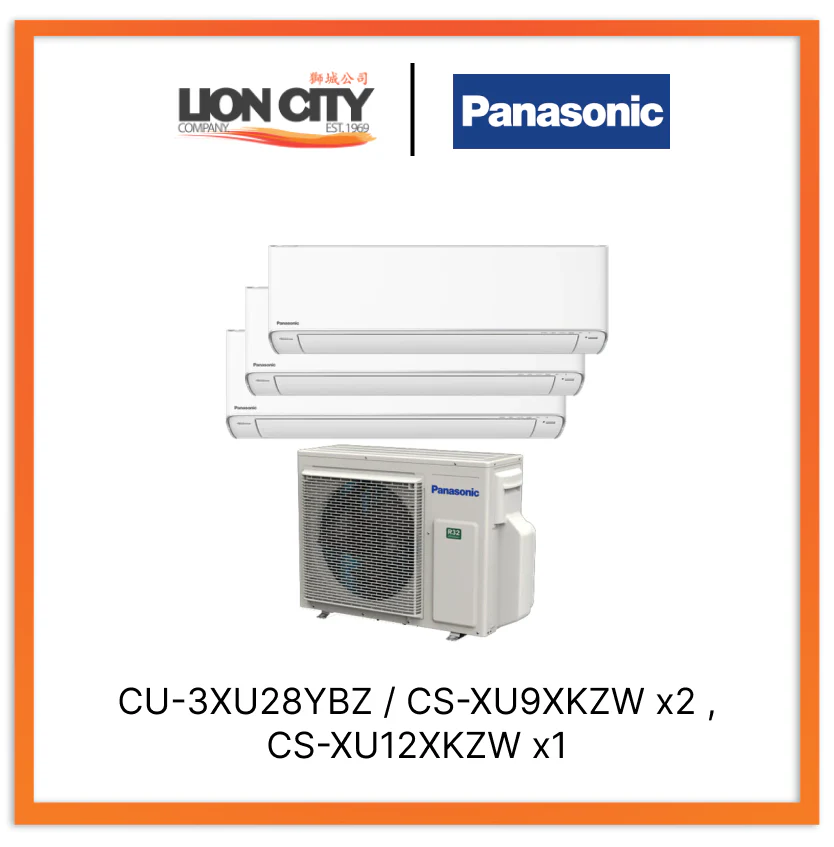

Panasonic Xu System 3 Aircon (9K X2 & 12K)

Panasonic Xu System 3 Aircon (9K X2 & 12K)

CU-3XU28YBZ
  • Model CU-3XU28YBZ
  • Cooling Capacity (min-max) 6.60 (2.80 ~ 9.80) kW
  • 22,500 (9,550 - 33,400) Btu/h
  • Power Source Single Phase, 220V-240V, 50Hz
  • Maximum Connectable Capacity 12.7 kW
  • Maximum Connectable Indoor 3 Units
  • Running Current 6.2 - 5.7 A
  • Power Input (min-max) 1,340 (520 - 2,500) W
  • EER (min-max) 16.79 (18.37 - 13.36) Btu/hW
  • COP (min-max) 4.93 (5.38 - 3.92) W/W
  • Weighted COP 5.70 W/W

    CS-XU9XKZW

    • Model Indoor (50 Hz) CS-XU9XKZW
    • Outdoor CU-XU9XKZW
    • Cooling Capacity (min-max) 2.70 (0.98-3.60) kW
    • 9,210 (3,340-12,300) Btu/h
    • COP (min-max) 5.19 (5.30-4.00) W/W
    • EER (min-max) 17.71 (18.05-13.67) Btu/hW
    • Weighted COP 5.8 W/W
    • Voltage 220-240 V
    • Current 2.6-2.4 A
    • Power Input (min-max) 520 (185-900) W
    • Moisture Removal 1.6 L/h
    • 3.4 Pt/h

    CS-XU12XKZW

    • Model Indoor (50 Hz) CS-XU12XKZW
    • Outdoor CU-XU12XKZW
    • Cooling Capacity (min-max) 3.70 (1.02-4.50) kW
    • 12,600 (3,480-15,300) Btu/h
    • COP (min-max) 4.46 (4.64-3.75) W/W
    • EER (min-max) 15.18 (15.82-12.75) Btu/hW
    • Weighted COP 5.67 W/W
    • Voltage 220-240 V
    • Current 3.9-3.7 A
    • Power Input (min-max) 830 (220-1,200) W
    • Moisture Removal 2.2 L/h
    • 4.6 Pt/h
    $1,253.00

    Original: $3,580.00

    -65%
    Panasonic Xu System 3 Aircon (9K X2 & 12K)—

    $3,580.00

    $1,253.00

    Product Information

    Shipping & Returns

    Description

    CU-3XU28YBZ
    • Model CU-3XU28YBZ
    • Cooling Capacity (min-max) 6.60 (2.80 ~ 9.80) kW
    • 22,500 (9,550 - 33,400) Btu/h
    • Power Source Single Phase, 220V-240V, 50Hz
    • Maximum Connectable Capacity 12.7 kW
    • Maximum Connectable Indoor 3 Units
    • Running Current 6.2 - 5.7 A
    • Power Input (min-max) 1,340 (520 - 2,500) W
    • EER (min-max) 16.79 (18.37 - 13.36) Btu/hW
    • COP (min-max) 4.93 (5.38 - 3.92) W/W
    • Weighted COP 5.70 W/W

      CS-XU9XKZW

      • Model Indoor (50 Hz) CS-XU9XKZW
      • Outdoor CU-XU9XKZW
      • Cooling Capacity (min-max) 2.70 (0.98-3.60) kW
      • 9,210 (3,340-12,300) Btu/h
      • COP (min-max) 5.19 (5.30-4.00) W/W
      • EER (min-max) 17.71 (18.05-13.67) Btu/hW
      • Weighted COP 5.8 W/W
      • Voltage 220-240 V
      • Current 2.6-2.4 A
      • Power Input (min-max) 520 (185-900) W
      • Moisture Removal 1.6 L/h
      • 3.4 Pt/h

      CS-XU12XKZW

      • Model Indoor (50 Hz) CS-XU12XKZW
      • Outdoor CU-XU12XKZW
      • Cooling Capacity (min-max) 3.70 (1.02-4.50) kW
      • 12,600 (3,480-15,300) Btu/h
      • COP (min-max) 4.46 (4.64-3.75) W/W
      • EER (min-max) 15.18 (15.82-12.75) Btu/hW
      • Weighted COP 5.67 W/W
      • Voltage 220-240 V
      • Current 3.9-3.7 A
      • Power Input (min-max) 830 (220-1,200) W
      • Moisture Removal 2.2 L/h
      • 4.6 Pt/h
