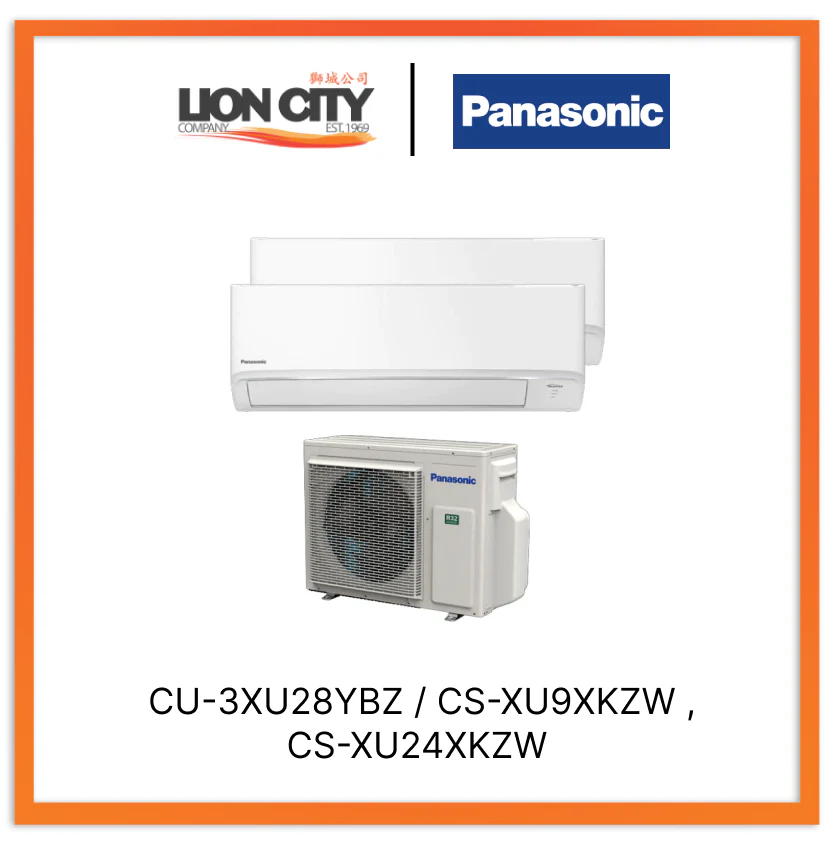

Panasonic Xu System 2 Aircon (9K + 24K)

CU-3XU28YBZ

• Model CU-3XU28YBZ
• Cooling Capacity (min-max) 6.60 (2.80 ~ 9.80) kW
• 22,500 (9,550 - 33,400) Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity 12.7 kW
• Maximum Connectable Indoor 3 Units
• Running Current 6.2 - 5.7 A
• Power Input (min-max) 1,340 (520 - 2,500) W
• EER (min-max) 16.79 (18.37 - 13.36) Btu/hW
• COP (min-max) 4.93 (5.38 - 3.92) W/W
• Weighted COP 5.70 W/W

CS-XU9XKZW

• Model Indoor (50 Hz) CS-XU9XKZW
• Outdoor CU-XU9XKZW
• Cooling Capacity (min-max) 2.70 (0.98-3.60) kW
• 9,210 (3,340-12,300) Btu/h
• COP (min-max) 5.19 (5.30-4.00) W/W
• EER (min-max) 17.71 (18.05-13.67) Btu/hW
• Weighted COP 5.8 W/W
• Voltage 220-240 V
• Current 2.6-2.4 A
• Power Input (min-max) 520 (185-900) W
• Moisture Removal 1.6 L/h
• 3.4 Pt/h

CS-XU24XKZW

• Model Indoor (50 Hz) CS-XU24XKZW
• Outdoor CU-XU24XKZW
• Cooling Capacity (min-max) 6.10 (1.12-7.18) kW
• 20,800 (3,820-24,500) Btu/h
• COP (min-max) 4.01 (4.48-3.68) W/W
• EER (min-max) 13.68 (15.28-12.56) Btu/hW
• Weighted COP 5.19 W/W
• Electrical Data Voltage 220-240 V
• Power Supply Outdoor
