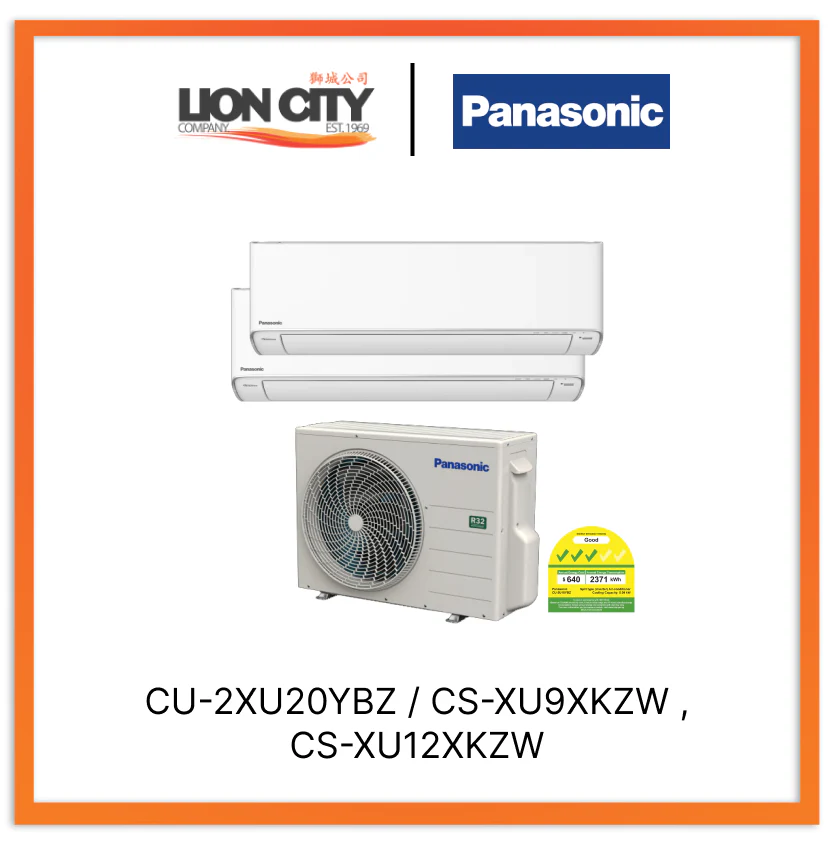

Panasonic Xu System 2 Aircon (9K & 12K)

CU-2XU20YBZ

• Model CU-2XU20YBZ
• Cooling Capacity (min-max) 4.50 (1.50 ~ 6.70) kW
• 15,300 (5,120 -22,800) Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity 9.5 kW
• Maximum Connectable Indoor 2 Units
• Running Current 4.3 - 4.0 A
• Power Input (min-max) 900 (250 - 1,800) W
• EER (min-max) 17.00 (20.48 - 12.67) Btu/hW
• COP (min-max) 5.00 (6.00 - 3.72) W/W
• Weighted COP 5.99 W/W

CS-XU9XKZW

• Model Indoor (50 Hz) CS-XU9XKZW
• Outdoor CU-XU9XKZW
• Cooling Capacity (min-max) 2.70 (0.98-3.60) kW
• 9,210 (3,340-12,300) Btu/h
• COP (min-max) 5.19 (5.30-4.00) W/W
• EER (min-max) 17.71 (18.05-13.67) Btu/hW
• Weighted COP 5.8 W/W
• Voltage 220-240 V
• Current 2.6-2.4 A
• Power Input (min-max) 520 (185-900) W
• Moisture Removal 1.6 L/h
• 3.4 Pt/h

CS-XU12XKZW

• Model Indoor (50 Hz) CS-XU12XKZW
• Outdoor CU-XU12XKZW
• Cooling Capacity (min-max) 3.70 (1.02-4.50) kW
• 12,600 (3,480-15,300) Btu/h
• COP (min-max) 4.46 (4.64-3.75) W/W
• EER (min-max) 15.18 (15.82-12.75) Btu/hW
• Weighted COP 5.67 W/W
• Voltage 220-240 V
• Current 3.9-3.7 A
• Power Input (min-max) 830 (220-1,200) W
• Moisture Removal 2.2 L/h
• 4.6 Pt/h
