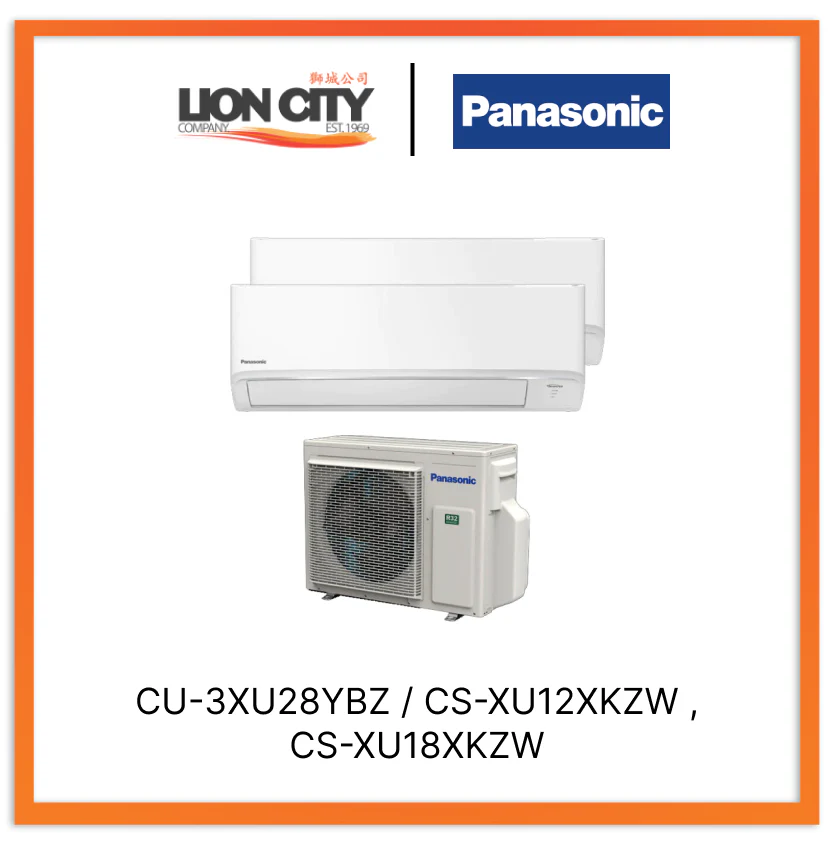

Panasonic Xu System 2 Aircon (12K + 18K)

CU-3XU28YBZ

• Model CU-3XU28YBZ
• Cooling Capacity (min-max) 6.60 (2.80 ~ 9.80) kW
• 22,500 (9,550 - 33,400) Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity 12.7 kW
• Maximum Connectable Indoor 3 Units
• Running Current 6.2 - 5.7 A
• Power Input (min-max) 1,340 (520 - 2,500) W
• EER (min-max) 16.79 (18.37 - 13.36) Btu/hW
• COP (min-max) 4.93 (5.38 - 3.92) W/W
• Weighted COP 5.70 W/W

CS-XU12XKZW

• Model Indoor (50 Hz) CS-XU12XKZW
• Outdoor CU-XU12XKZW
• Cooling Capacity (min-max) 3.70 (1.02-4.50) kW
• 12,600 (3,480-15,300) Btu/h
• COP (min-max) 4.46 (4.64-3.75) W/W
• EER (min-max) 15.18 (15.82-12.75) Btu/hW
• Weighted COP 5.67 W/W
• Voltage 220-240 V
• Current 3.9-3.7 A
• Power Input (min-max) 830 (220-1,200) W
• Moisture Removal 2.2 L/h
• 4.6 Pt/h

CS-XU18XKZW

• Model Indoor (50 Hz) CS-XU18XKZW
• Outdoor CU-XU18XKZW
• Cooling Capacity (min-max) 5.00 (1.10-6.21) kW
• 17,100 (3,750-21,200) Btu/h
• COP (min-max) 4.35 (4.40-3.65) W/W
• EER (min-max) 14.87 (15.00-12.47) Btu/hW
• Weighted COP 5.69 W/W
• Voltage 220-240 V
• Current 5.5-5.1 A
• Power Input (min-max) 1,150 (250-1,700) W
• Moisture Removal 2.8 L/h
