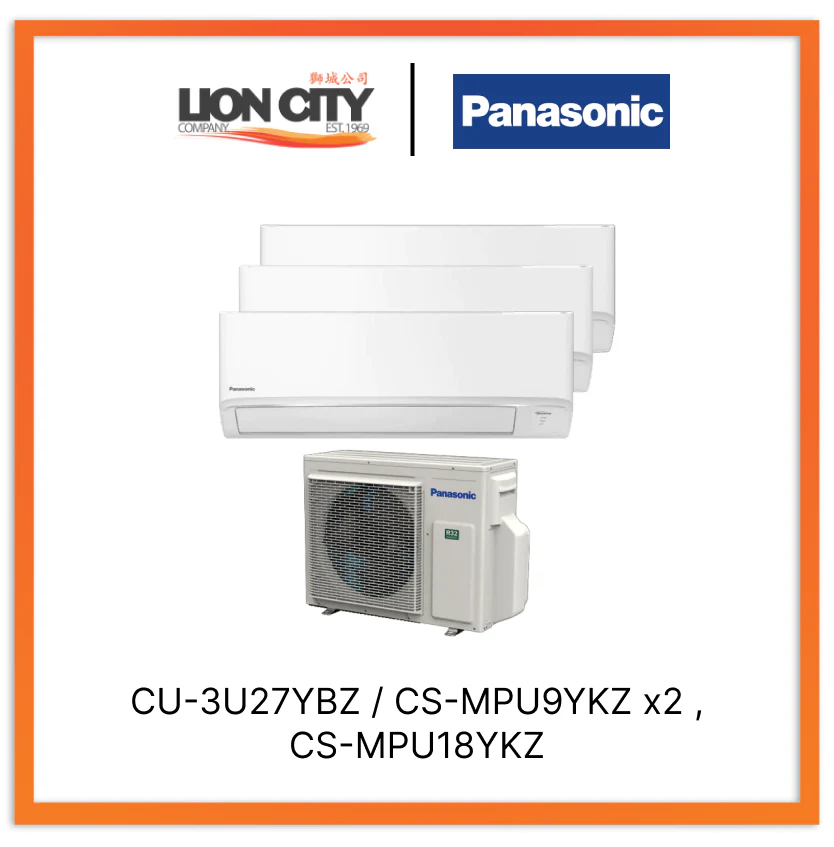

Panasonic U System 3 Aircon (9K X2 + 18K)

CU-3U27YBZ

• Model CU-3U27YBZ
• Cooling Capacity (min-max) 7.50 (2.80 ~ 9.50) kW
• 25,600 (9,550 ~ 32,400) Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity 14.8 kW
• Maximum Connectable Indoor 3 Units
• Running Current 9.2 - 8.4 A
• Power Input (min-max) 1,980 (540 - 2,740) W
• EER (min-max) 12.93 (17.69 - 11.82) Btu/hW
• COP (min-max) 3.79 (5.19 - 3.47) W/W
• Weighted COP 4.61 W/W

CS-MPU9YKZ

• Model CS-MPU9YKZ
• Cooling Capacity 2.8 kW
• 9,550 Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Sound Pressure Level High/Low 43/28 dB(A)
• Air Circulation High 12.7 m³/min (450 ft³/min)
• Height 290 mm
• Width 779 mm
• Depth 209 mm

CS-MPU18YKZ

• Model CS-MPU18YKZ
• Cooling Capacity 5 kW
• 17,100 Btu/h
• Power Source Single Phase, 220V-240V, 50Hz
• Sound Pressure Level High/Low 45/34 dB(A)
• Air Circulation High 13.3 m³/min (470 ft³/min)
• Height 290 mm
• Width 779 mm
• Depth 209 mm
• Net Weight 9 kg
• Refrigerant Pipe Diameter  Liquid Side ø 6.35 mm  Gas Side ø 9.52 mm
• Power Supply Outdoor
