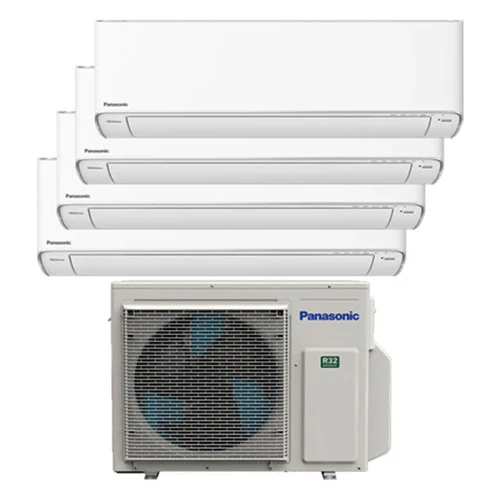

Panasonic CU-4XU33YBZ / CS-XU9XKZW x3 + CS-XU18XKZW XU SYSTEM 4 AIRCON (9K x3 + 18K)

KEY FEATURES

• 5-tick energy efficiency rating
• Environmentally friendly R32 refrigerant
• Energy savings and precise temperature control with Inverter
• High cooling capacity of 7kW
• Durable under harsh conditions
• Compact design fits every building type

Features

Cooling Capacity (min-max)

• 7.00 (2.80 ~ 11.20) kW
•  23,900 (9,550 - 38,200) Btu/h
• Power Source    Single Phase, 220V-240V, 50Hz
• Maximum Connectable Capacity    17.6 kW
• Maximum Connectable Indoor    4 Units
• Electrical Data    Running Current: 6.7 - 6.1 A
• Power Input (min-max): 1,440 (520 - 3,000) W
• EER (min-max)    16.60 (18.37 - 12.73) Btu/hW
• COP (min-max)    4.86 (5.38 - 3.78) W/W
• Weighted COP    5.61 W/W
• Sound Pressure Level    High/Low 54/49 dB(A)
• Maximum Current    16.6 A
• Starting Current    6.7 A
• Compressor Output    1,500 W

Dimensions

• Height: 695 mm
• Width: 875 (+95) mm
• Depth: 320 mm
• Net Weight    50 kg

Refrigerant Pipe Diameter

• Liquid Side: ø 6.35 mm x 4
• Gas Side: ø 9.52 mm x 4

Pipe Extension

• Maximum Pipe Length (1 Room): 30 m
• Maximum Pipe Length (Total): 70 m
• Maximum Elevation Length: 15 m
• Additional Refrigerant Gas: Chargeless
