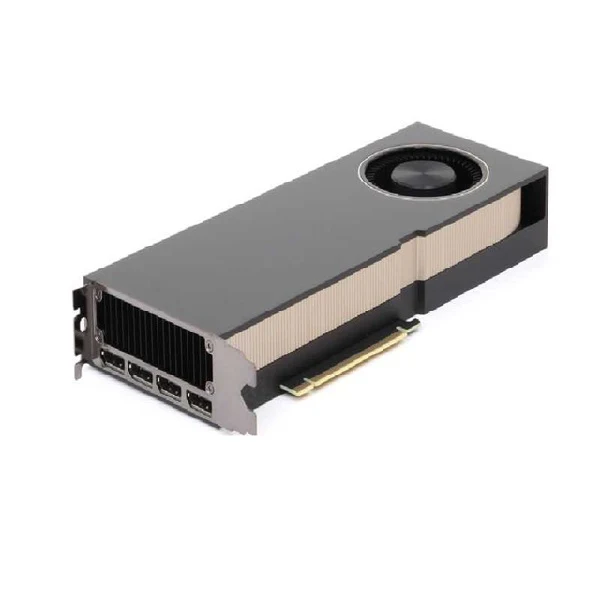

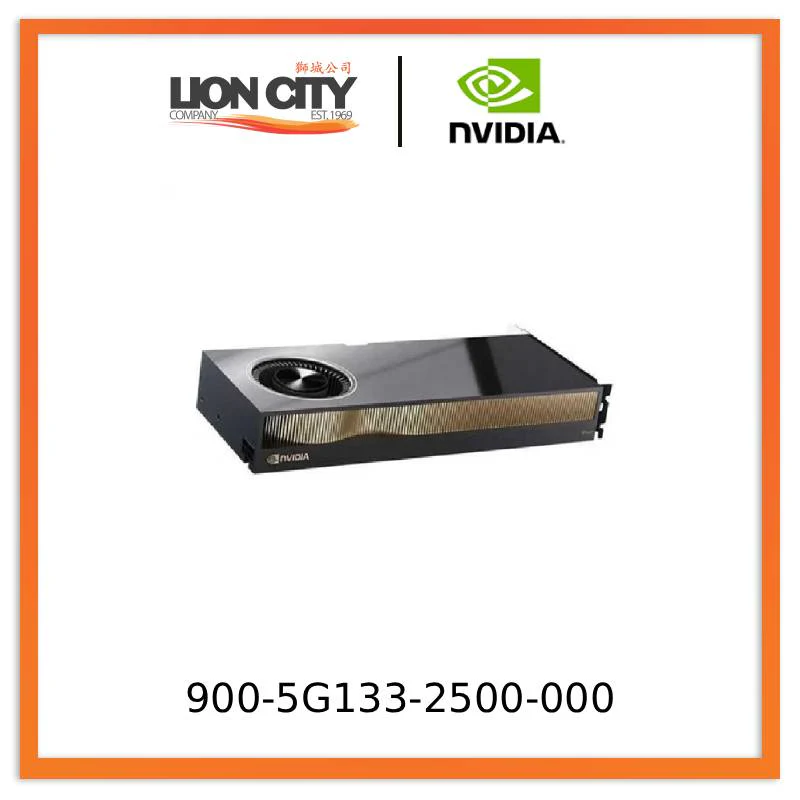

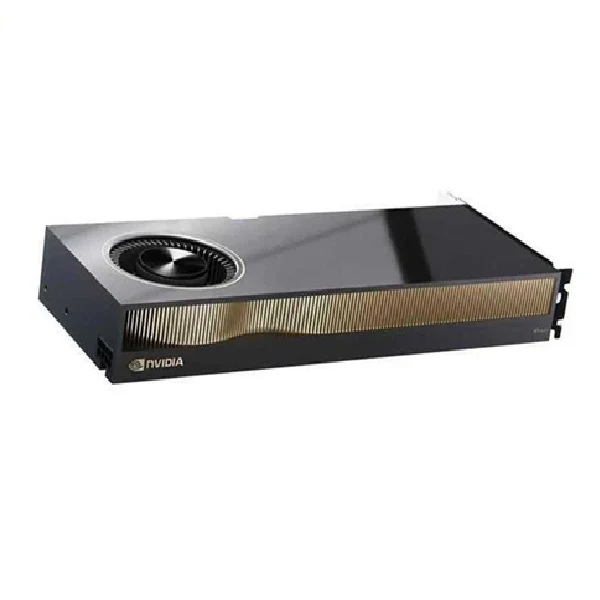

NVIDIA RTX A6000 48GB GDDR6 Graphic Card 900-5G133-2500-000

Specifications:

Engine Specs:

• Engine Architecture: Ampere
• Cuda Cores: 10752
• Tensore Cores ( 3rd Gen ): 336
• Rt Cores ( 2nd Gen ): 84
• Single Precision Performance: 38.7 Tflops
• Rt Core Performance: 75.6 Tflops
• Tensor Performance: 309.7 Tflops
• Gpu Clock: 1410 Mhz
• Boost Clock: 1800 Mhz
• Process Size: 8nm
• Transistors: 28.3 Billion
• Die Size: 628 Mm Square

Memory:

• Memory Configuration: 48gb
• Memory Interface: Gddr6
• Memory Interface Width: 384 Bit
• Memory Bandwidth: 768 Gb/s
• Memory Clock: 16 Gb/s

Support:

• Bus Support: Pci-e 4.0
• Physical Bus Interface: Pci-e 4.0 X16
• Error Correction Code ( Ecc ): Yes
• Supported Technologies: Nvidia Ampere Technology, Cuda Cores Technology, 2nd Gen Rt Cores, 3rd Gen Tensor Cores, Higher Speed Gddr6 Memory, 5th Gen Nvdec Engine, 7th Gen Nvenc Engine, Directx 12.07, Shader Model 5.17, Opengl 4.68, Opencl, Nvidia Rtx Io, Nvidia Mosaic Technology, Nvidia Quadro Sync Ii Support, Nvidia Quadro Experience, Desktop Management Software, Professional 3d Stereo Synchronization, Nvidia Virtual Gpu ( Vgpu ) Software Support, Nvidia Rtx Experience, Software Optimized For Ai, Nvidia Cuda Parallel Computing Platform, Unified Memory, Nvidia Gpudirect For Video, Nvidia Enterprise Management Tools, Hdcp 2.2 Support, Pci Express Gen4
• Error Correction Code ( Ecc ): Yes
• Nvlink Support: Yes, 2-way ( 3rd Gen )
• Nvlink Interconnect: 112.5gb/s Bidirectional
• Code Engine: 1x Encode / 2x Decode ( +av1 Decode )
• Operating System: Microsoft Windows 10 64 Bit / Linux 64 Bit

Display Support:

• Display Resolution: 7680 X 4320 At 60hz ( 2 Displays ) Or 5120 X 2880 At 60hz ( 4 Displays ) Or 4096 X 2160 At 120hz ( 4 Displays )
• Multi Monitor: Yes, Up To 4 Displays

Connections:

• Display Connectors: ( 4 ) Four Displayports Dp
• Power Connectors: ( 1 ) One 8 Pin Power Connector
• Additional Connectors: ( 1 ) One Nvlink Interface ( 1 ) One 14 Pin Sync Connect ( 1 ) One 4p Stereo

Thermal And Power Specs:

• Total Power Consumption ( W ): 300w

System Requirements:

• Recommended Psu ( W ): 700w
• Memory Space: System Memory Greater Than Or Equal To Gpu Memory / Twice The Gpu Memory Or Higher Recommended
• Cooling System: Active - ( 1 ) One Active Fansink ( Single Fan Blower )
  Form Factor: Dual Slot
• Dimensions: 4.4 Inch ( H ) X 10.5 Inch ( L )
