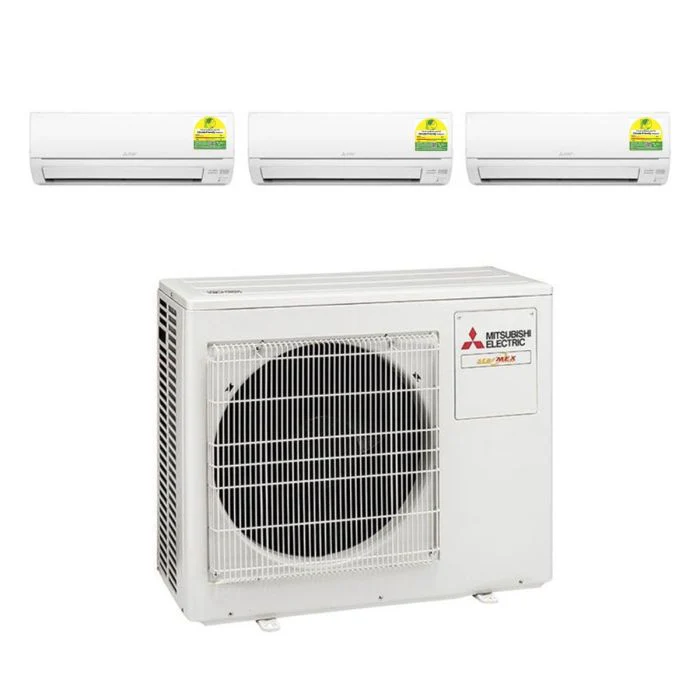

Mitsubishi System 3 Aircon MXY-3H28VG/2XMSXY-FP10VG/1XMSXY-FP13VG

The Mitsubishi System 3 Aircon provides multi‑room cooling with a combined capacity of 2×9,000 BTU and 1×12,000 BTU. It features inverter technology for energy‑efficient operation and a quiet fan design rated as low as 19 dB(A). The system includes three indoor units with dimensions 79.9 cm × 23.2 cm × 29.0 cm and a net weight of 9 kg each. Advanced airflow control delivers up to 14.1 CMM, and the unit uses R32 refrigerant with a 230 V, single‑phase power supply.

Combined Capacity	2×9,000 BTU & 1×12,000 BTU
Rated Capacity (Indoor Unit)	3.5 kW (MSXY‑FP13VG) / 2.8 kW (MSXY‑FP10VG)
Power Input	0.036 kW (MSXY‑FP13VG) / 0.028 kW (MSXY‑FP10VG)
Running Current	0.33 A (MSXY‑FP13VG) / 0.27 A (MSXY‑FP10VG)
Airflow Rate	4.1‑14.1 CMM (MSXY‑FP13VG)
Sound Level	19‑47 dB(A)
Dimensions (WxDxH)	79.9 cm × 23.2 cm × 29.0 cm
Net Weight	9 kg
External Piping – Gas Diameter	9.52 mm
External Piping – Liquid Diameter	6.35 mm
Refrigerant	R32
Power Supply	230 V, 1 Phase, 50 Hz
NEA Rating	5 Ticks
Warranty	1 Year
