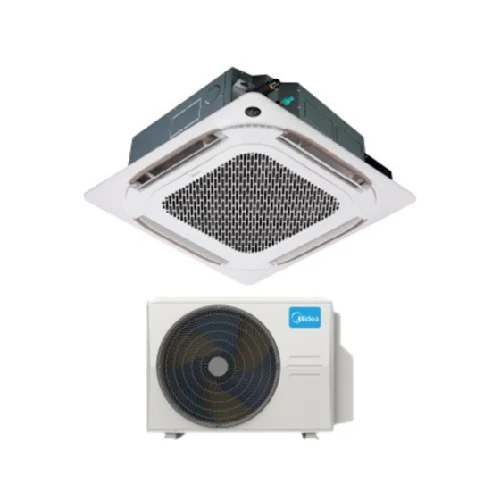

Midea MOU32-HVN32E(SG)/MCD32-HRFN32E(SG) Cassette Aircon

Specifications:

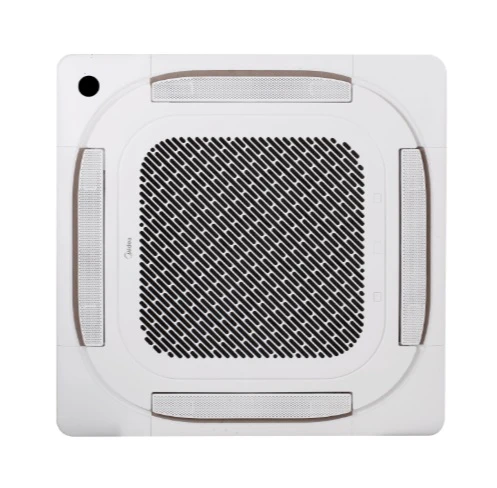

• Indoor Customer Model MCD32-HRFN32E(SG)

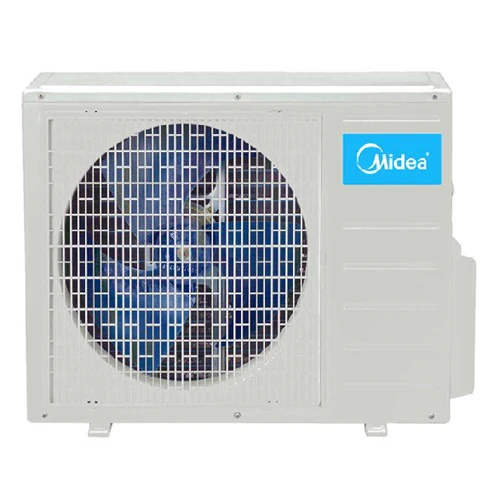

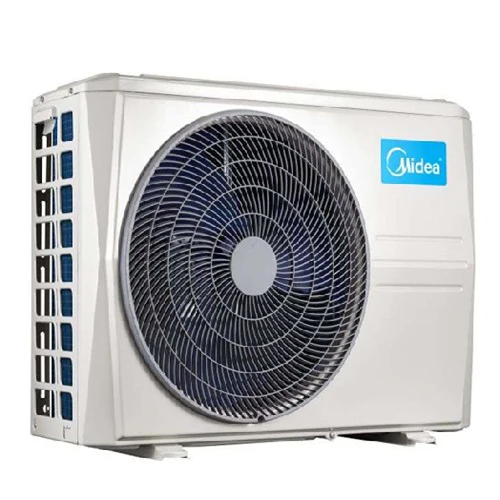

• Outdoor Customer Model MOU32-HVN32E(SG)
• Power supply 220_240V_1Ph,FREQUENCY_50HZ
• Cooling(Standard conditions)
  • Capacity 9.32(3.85-11.78)
  • Input 2755 (710~3640)

  • Current 12.81 (3.7~16.5)
• Rated Power Input 5000
• Rated Current 22.5
• Indoor air flow (Hi/Mi/Lo) 1847/1666/1484
• Indoor noise level (Hi/Mi/Lo) 51/48.5/46
• Indoor unit
  • Dimension(W*D*H)(body) 830x830x287
  • Dimension (W X Dx H)(panel) 950x950x55
  • Packing (W*D*H)(body) 910x910x330
  • Packing (W X Dx H)(panel) 1035x1035x90
  • Net/Gross weight(body) 29/34
  • Net/Gross weight(panel) 6/9
• Drainage water pipe dia ODФ25mm
• Compressor
  • Capacity 4780/7600
  • Input 805/2045
  • Rated current(RLA)  4.15/9.30
  • Refrigerant oil/oil charge VG74 620
• Outdoor air flow 4000
• Outdoor sound pressure level 59
• Outdoor unit
  • Dimension(W*D*H) 946x410x810

  • Packing (W*D*H)  1090x500x885
  • Net/Gross weight  67.0/72.0
• Refrigerant
  • Type R32
  • Charged quantity 2.5
• Refrigerant piping
  • Liquid side/ Gas side 9.52mm(3/8in)+16mm(5/8in)
  • Max. length for all rooms 80
  • Max. length for one indoor unit 35

  • Max. height difference between indoor and outdoor unit 15
  • Max. height difference between indoor units 10
• Room temperature
  • Outdoor(cooling/heating)  -15 50//
