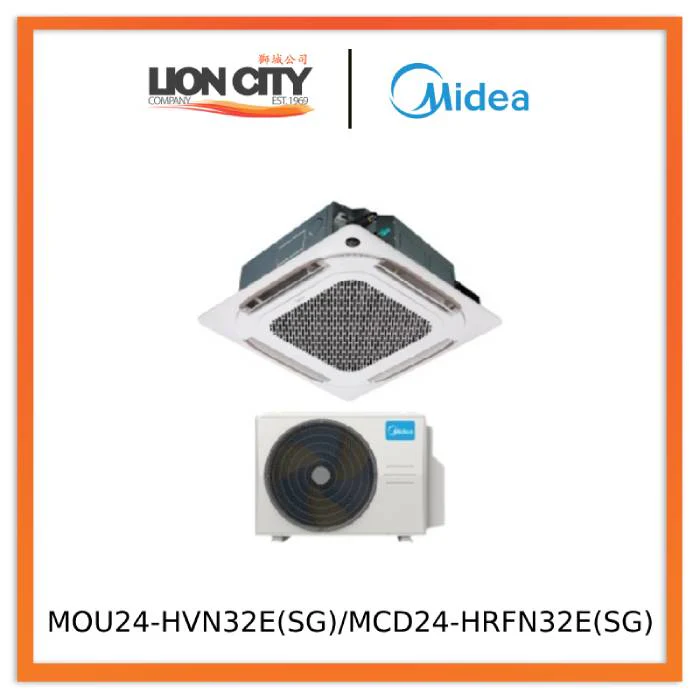

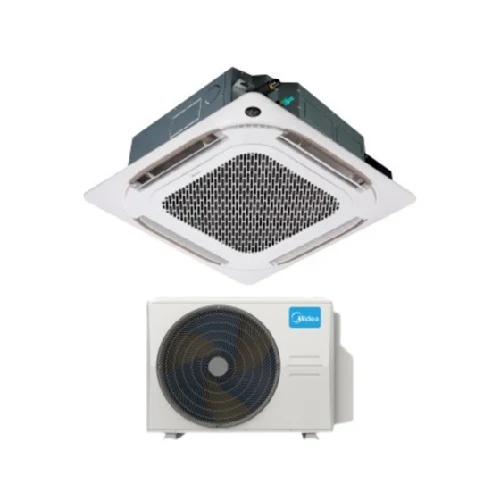

Midea MOU24-HVN32E(SG)/MCD24-HRFN32E(SG) Cassette Aircon

Specifications:

• Indoor Customer Model MCD24-HRFN32E(SG)
• Outdoor Customer Model MOU24-HVN32E(SG)
• Power supply 220_240V_1Ph,FREQUENCY_50HZ
• Cooling(Standard conditions)
  • Capacity 6.97(2.65-8.29)
  • Input 2197 (490~2230)

  • Current 9.68 (2.4~10.1)
• Rated Power Input 4000
• Rated Current 16.5
• Indoor air flow (Hi/Mi/Lo) 2000/1650/1400
• Indoor noise level (Hi/Mi/Lo) 50/46/41.5
• Indoor unit
  • Dimension(W*D*H)(body) 830x830x287
  • Dimension (W X Dx H)(panel) 950x950x55
  • Packing (W*D*H)(body) 910x910x330
  • Packing (W X Dx H)(panel) 1035x1035x90
  • Net/Gross weight(body) 27.5/32
  • Net/Gross weight(panel) 6/9
• Drainage water pipe dia ODФ25mm
• Compressor
  • Capacity 5575
  • Input 1485
  • Rated current(RLA)  6.8
  • Refrigerant oil/oil charge ESTER OIL VG74 620
• Outdoor air flow 3000
• Outdoor sound pressure level 56
• Outdoor unit
  • Dimension(W*D*H) 890x342x673

  • Packing (W*D*H)  1030x438x750
  • Net/Gross weight  48.4/52.6
• Refrigerant
  • Type R32
  • Charged quantity 1.9
• Refrigerant piping
  • Liquid side/ Gas side 9.52mm(3/8in)+16mm(5/8in)
  • Max. length for all rooms 80
  • Max. length for one indoor unit 35

  • Max. height difference between indoor and outdoor unit 15
  • Max. height difference between indoor units 10
• Room temperature
  • Outdoor(cooling/heating)  -15 50//
