Samsung LH55QHHPLGC/XS 55inch SMART Signage

Specifications

Display

• Diagonal Size:55"
• Panel Type: Edge LED, 120Hz
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV, mm): 105 x 315 um
• Brightness (Typical): Landscape:600nit(peak 1,600nit), Portrait: 500nit (peak 1,000nit)
• Contrast Ratio: 6000
• Viewing Angle (H/V): 178/178
• Response Time: 6ms‎
• Color Gamut: 99%(sRGB)‎
• Glass Haze: 0%‎
• H-Scanning Frequency: 30 ~ 81kHZ
• Maximum Pixel Frequency: ‎594MHz‎
• V-Scanning Frequency: 48 ~ 75HZ‎
• Contrast Ratio (Dynamic): Mega

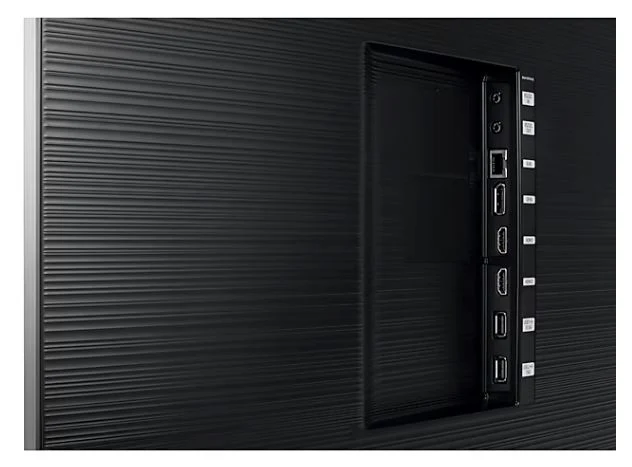

Connectivity

• HDMI In: 2
• DP In: Yes
• USB: 2
• IR In: No
• HDBaseT In: No
• RS232 In: Yes
• RS232 Out: Yes
• RJ45 In: Yes
• RJ45 Out: No
• WiFi: Yes
• Bluetooth: Yes

Power

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode, W): ‎198‎
• Power Consumption (Sleep Mode, W): ‎0.5‎

Dimension

• Set Dimension (WxHxD, mm): ‎1225.2 x 697.8 x 44‎
• Package Dimension (WxHxD, mm): ‎1420 x 819 x 170‎

Weight

• Set Weight: ‎17.3‎
• Package Weight: 23.9‎

Operation Conditions

• Temperature: ‎0℃~ 40℃‎
• Humidity: 10~80%‎

Mechanical Specification

• VESA Mount (mm): ‎400 x 400‎
• Bezel Width (mm): Bezel-less Design ( Deco Frame: 2.6mm (T/L/R) / 6.7mm (B) )
• Frame Material: Non-Glossy

Optional Feature

• Mount: WMN4270SD, WMN-M11E
• Stand: STN-L4655E
