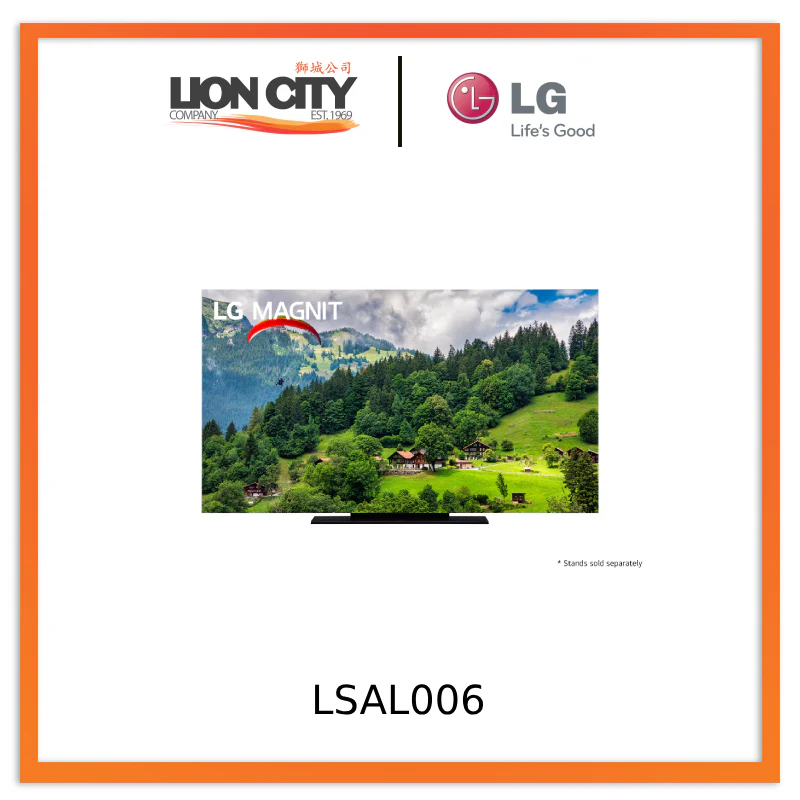

LG LSAL006 MAGNIT Indoor LED Signage

Physical Parameter

• Pixel Pitch (mm) 0.68
• Screen Resolution (WxH) 3,840 × 2,160
• Screen Dimension (W x H x D,mm) 2,615.2 × 1,472.8 × 99.5 (14.5 at slimmest point)

Optical Parameter

• Max. Brightness (After Calibration) 250 / Peak 2,000
• Visual Viewing Angle (Horizontal/Vertical) 150 / 150
• Contrast Ratio (10 lux) 150,000:1 @10lux
• Processing Depth (bit) 20 (HDR10, HDR10 Pro)

Electrical Parameter

• Power Consumption (W/Screen, Max.) 1,055
• Power Consumption (W/Screen, Avg.) 805
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 100 / 120
• Refresh Rate (Hz) 3,840

Operation Conditions

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) 0 ℃ to +40 ℃
• Operating Humidity 10-80% RH
• IP rating Front / Rear IP50 / IP20
