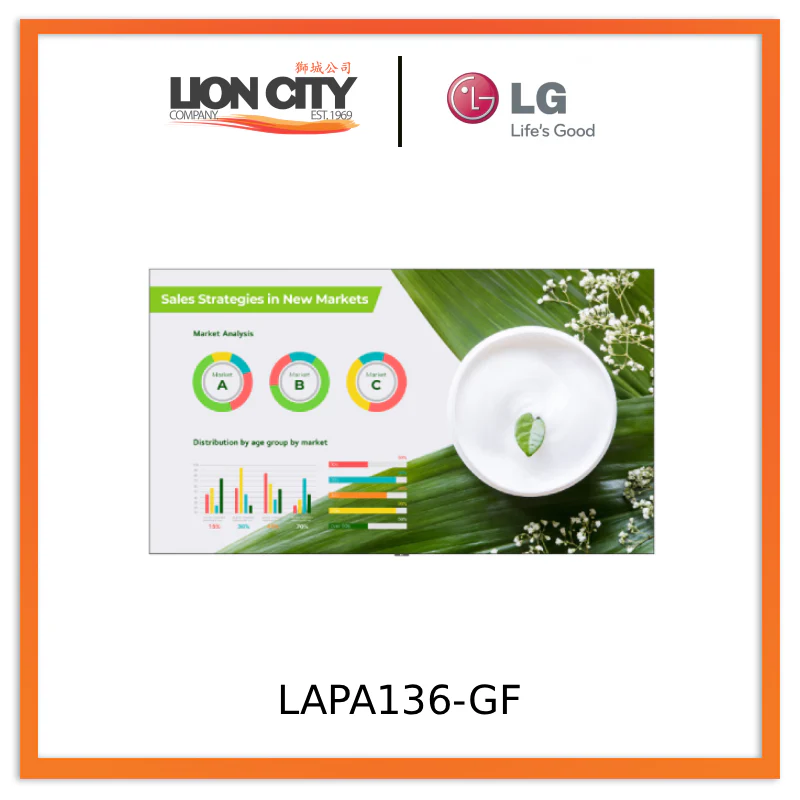

LG LAPA136-GF All-in-One LED Indoor LED Signage

Tech Spec
Physical Parameter

• Pixel Pitch (mm)    1.56

• Module Resolution (W x H)    192 × 108

• Module Dimensions (W x H, mm)    300 × 168.75

• Screen Resolution (WxH)    1,920 × 1,080

• Screen Dimension (W x H x D,mm)    3,005 × 1,692.5 X 29.95 (Thickest 59.5)

• Screen Weight (kg)    108.5

• No. of Modules per Screen (W x H)    10×10 (Total 100)

• Screen Surface Area (㎡)    5.06

• Physical Pixel Density (pixels/m²)    409,600

• Flatness of Cabinet    ±0.15

• Cabinet Material    Aluminum

• Service Access    Front


Optical Specifications

• Brightness (After Calibration)    500 (Typ.)

• Color Temperature (K)    3,200-9,300

• Visual Viewing Angle (Horizontal/Vertical)    150 / 150

• Brightness Uniformity    98%

• Color Uniformity    ±0.015 Cx, Cy

• Contrast Ratio    3,000 : 1

• Processing Depth (bit)    16 (HDR10, HDR10 Pro)


Electrical Specifications

• Power Consumption (W/Screen, Max.)    1,300

• Power Consumption (W/Screen, Avg.)    650

• Power Consumption (W/m², Max.)    260

• Heat Dissipation (BTU/h/Screen, Max.)    4,436

• Heat Dissipation (BTU/h/Screen, Avg.)    2,218

• Heat Dissipation (BTU/h/㎡, Max.)    888

• Power Supply (V)    100 to 240

• Frame Rate (Hz)    50 / 60

• Refresh Rate (Hz)    3,840
