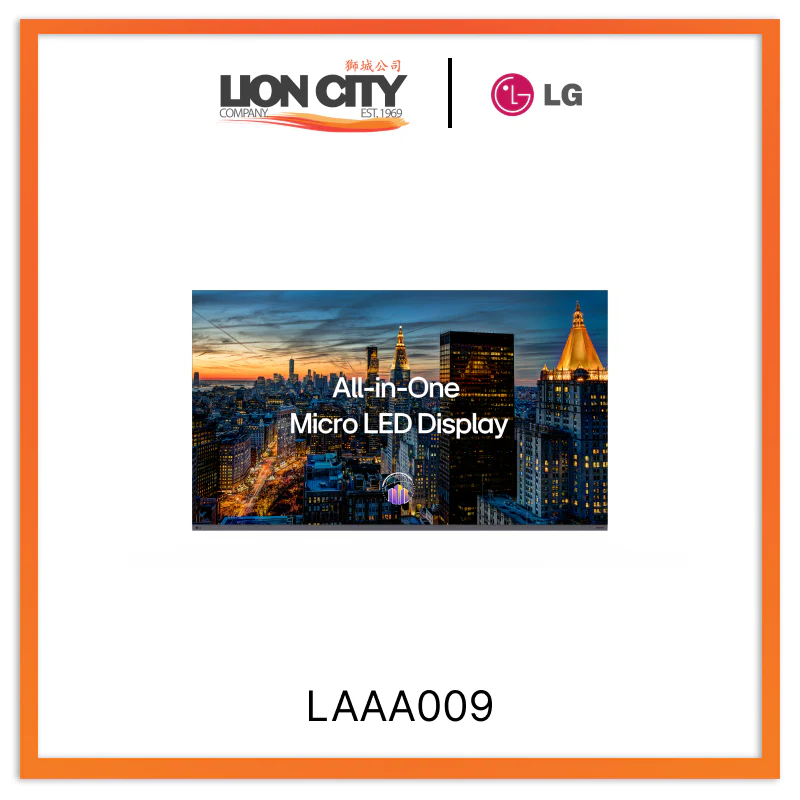

LG LAAA009 MAGNIT All-in-One LED Signage 163"

Physical Parameter

• Pixel Pitch (mm): 0.94
• Pixel Configuration: Micro LED
• Module Resolution (W x H): 320 × 120
• Module Dimensions (W x H, mm): 300 × 112.5
• Screen Resolution (W x H): 3,840 × 2,160
• Screen Dimensions (W x H x D, mm): 3,604 × 2,078.8 × 54.9 (Thickest 57.4)
• Screen Weight (kg): 258.4
• No. of Modules per Screen (W x H): 12 × 18 (Total 216)
• Screen Surface Area (㎡): 7.29
• Physical Pixel Density (pixels/m²): 1,137,778
• Flatness of Cabinet: ±0.2 mm
• Cabinet Material: Steel
• Service Access: Front

Optical Parameter

• Max. Brightness (After Calibration): 500 / (Peak.) 1,500
• Color Temperature (K): 3,200-9,300
• Visual Viewing Angle (Horizontal/Vertical): 160 / 160
• Brightness Uniformity: 95%
• Color Uniformity: ±0.015 Cx, Cy
• Contrast Ratio (10 lux): 40,000 : 1 @10lux
• Processing Depth (bit): 20 (HDR10, HDR10 Pro)

Electrical Parameter

• Power Consumption (W/Screen, Max.): 1,750
• Power Consumption (W/Screen, Avg.): 900
• Power Consumption (W/m², Max.): 240
• Power Consumption (BTU/h/Screen, Max.): 5,971
• Power Consumption (BTU/h/Screen, Avg.): 3,071
• Power Consumption (BTU/㎡, Max.): 819
• Power Supply (V): 100 to 240
• Frame Rate (Hz): 50 / 60
• Refresh Rate (Hz): 3,840

Operation Conditions

• Lifetime (Hours to Half Brightness): 100,000
• Operating Temperature (°C): 0 to +40
• Operating Humidity: 10-80% RH
• IP Rating Front / Rear: IP50 / IP20
