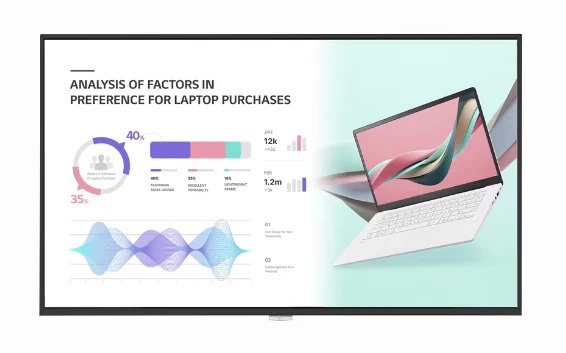

LG 86UH5J-H 86″ New High Haze UHD Standard Signage

Panel:

• Screen Size 86
• Panel Technology IPS
• Back Light Type Edge
• Aspect Ratio 16 : 9
• Native Resolution 3840 x 2160 (UHD)
• Refresh Rate 120Hz
• Brightness 500nit (Typ.)
• Contrast Ratio 1,100:1
• Dynamic CR 1,000,000:1
• Color gamut NTSC 72%
• Viewing Angle(H x V) 178 X 178
• Color Depth 10bib, 1.07
• Billion colors
• Response Time 8ms (G to G)
• Surface Treatment(Haze) 28%
• Life time 50,000Hrs (Typ.)
• Operation Hours (Hours/Day) 24/7
• Portrait / Landscape Yes / Yes

Mechanical Specification:

• Bezel Color Black
• Bezel Width Even bezel : 14.3mm
• Weight(Head) 49.0Kg
• Packed Weight 72.5Kg (With Pallet)
• Monitor Dimension(W x H x D) 1926.2 x 1097.2 x 60.6mm(without Handle and LG Logo)
• Carton Dimensions(W x H x D) (Box outer size) 2073 x 1250 x 285mm
• Handle Yes
• VESATM Standard Mount Interface 600 x 400

Power:

• Power Supply AC 100-240 V~, 50/60 Hz
• Power Type Built-In Power

Power Consumption:

• Typ. 215W (TBD)
• Max. 280W (TBD)
• BTU (British Thermal Unit) 733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max) (TBD)
• Smart Enegy Saving(~70%) 150.5W (TBD)
• DPM 0.5W
• Power off 0.5W

Sound:

• Speaker Yes

Certification:

• Safety CB / NRTL
• EMC FCC Class "A" / CE / KC
• ErP / Energy Star Yes (NewErP) / No (TBD)

Software Compatibility:

• SuperSign CMS Yes
• SuperSign Control / Control+ Yes / Yes
• SuperSign WB Yes
• SuperSign Media Editor Yes
• Promota Yes (Not available for EU/CIS)
• Mobile CMS Yes
• Signage 365 Care Yes
